Operating and installation instructions
CODI
®
S/B - Condensate collection / steam distribution
7.4 Insulating jacket option
- With the CODI® already fixed to the carrier
structure, push base insulation (Fig. 6)
between body (Pos. 1) and carrier
structure.
- Lay sides of base insulation around body
(Pos. 1).
- Close Velcro fastener.
- Check proper fit of insulating jacket and
align if necessary.
- Push outer jacket (Fig. 7) between carrier
structure and CODI® fitted with base
insulation.
- Lay sides of outer jacket around body (Pos.
1) with base insulation fitted.
- Close Velcro fastener.
- Close strap fasteners.
- Check proper fit of outer jacket and align if necessary.

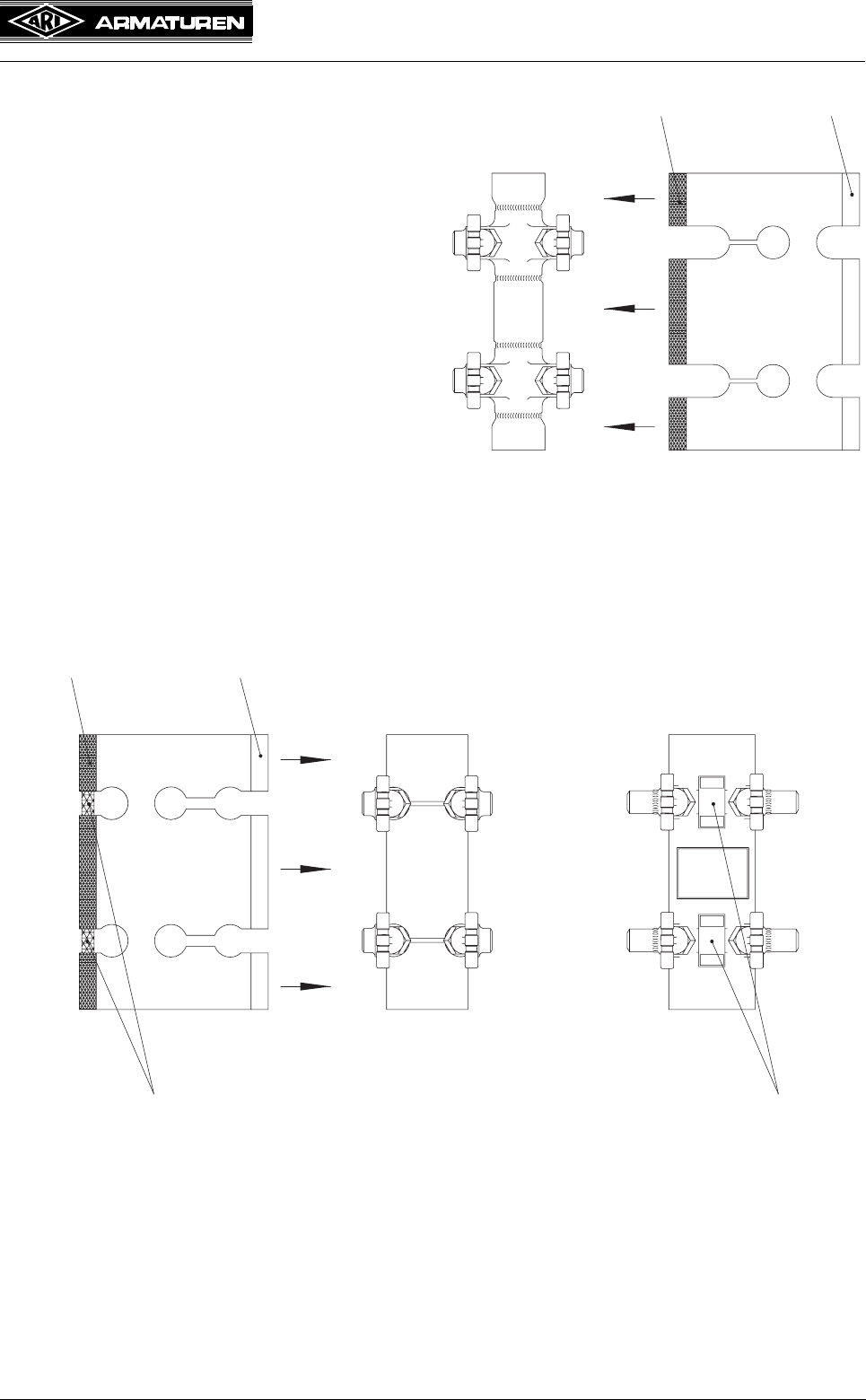

Fig. 7: Outer jacket
Fig. 6: Base insulation
inner Velcro
inside
fastener
outer Velcro
fastener
inner Velcro
inside
fastener
outer Velcro
fastener
Strap
(Velcro fastener on
outside of outer jacket)
Strap
(Velcro fastener on
outside of outer jacket)
