Installation Guide

© 2020, Architectural Mailboxes, LLCRev. I

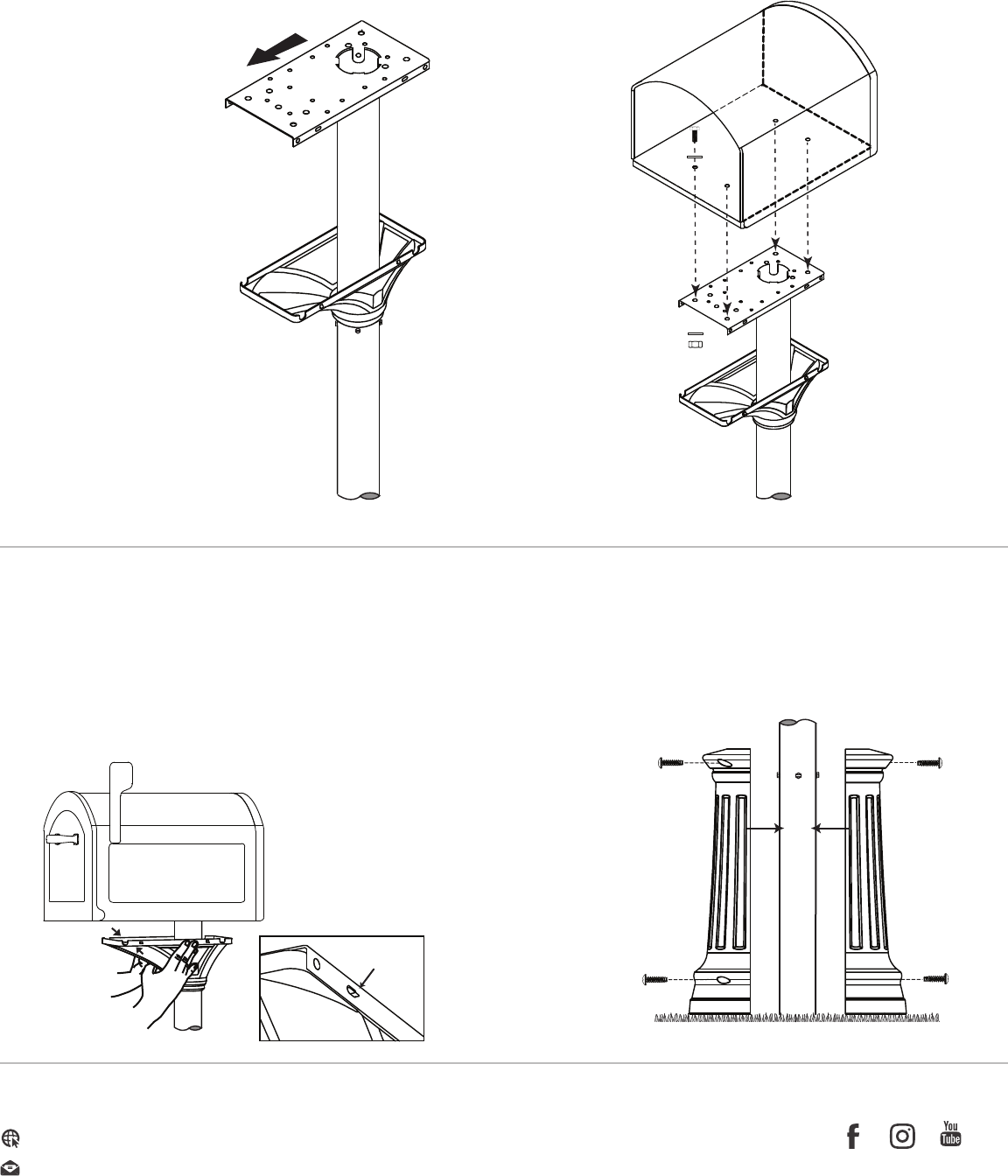

Install the assembled post into the ground.
Ensure that the mounting plate is facing
toward the street before installing into the
ground.
A concrete footing is highly
recommended. Typical post depths
range from 12”-18” and may vary
based on your installation
application.
Pay particular attention to the
location, height, and distance from
the street.
Stud properly inserted
in side notch.
Once the mailbox is mounted, carefully push
the plastic bracket up into the mailbox plate.
Press the sides of the bracket inward making
sure the four studs snap into the rectangular
notches on the sides of the mounting plate as
shown below.
6
4
Attach the mailbox to the mounting plate
using the 4 large hex bolts, 8 large washers,
and 4 large nuts.
Attach the two halves of the decorative post
cover to each other around the post using the
4 small Phillips screws.
The cover will be slightly
loose so that it can be
raised during gardening or
lawn maintenance.
7
5
