Setting Up your Computer to Use the Web-Based Advanced
User Interface
The default IP address of the Router (while functioning in Adapter
Mode) is 192.168.2.225. You will need to set your computer’s IP
address to the same subnet (e.g., 192.168.2.224) before you can
access the Web-Based Advanced User Interface. Perform the
following steps from Windows 98SE, Me, 2000, or XP:
1.
Move the center of the switch on the back panel to align with the
word “Adapter”.
2.
Go to the Windows Control Panel and double-click on the
“Network” icon or the “Network Connections” icon.
3.
Right-click on the “Local Area Connection” button for your Router
and select “Properties”.

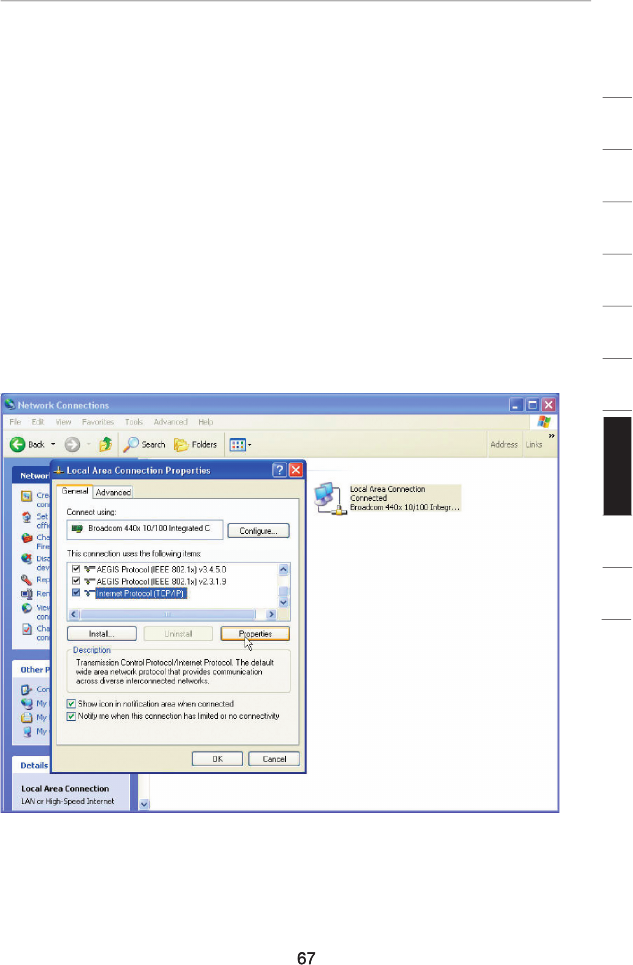

4.
In the “General” window, select the Internet Protocol TCP/IP
settings for your Router and click on “Properties”.
5.
Select the “Use the following IP address” radio button.
