Owner's manual

Model P/R60C-8 Differential pH or ORP Probes
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Technical Data
Related Products
Measuring Range
pH 0 to 14 pH
(Call factory for applications below 2 or above 12).
ORP -2000 to +2000 mV
Flow Rate 10 ft./sec maximum (3 meters/sec)
Flow should be as low as possible in
water with low conductivity water or suspended solids
Wetted Materials CPVC, Kynar, glass, titanium palladium alloy and EPDM
(platinum for ORP probe). Opt. Viton and ceramic
Transmission Distance 3000 ft. (900 m)
Sensitivity
pH 0.001 pH
ORP 0.1 mV
Stability
pH 0.03 pH per day, non-cumulative
ORP 2 mV per day, non-cumulative
Temperature Compensation
3000 Ω NTC or 1000 Ω
RTD
-5 to 95°C (23 to 203°F)
Pressure Limit 100 psig at 65°C maximum
Temperature Limits -5 to 95°C (23 to 203°F)
Probe Cable 5 Conductor plus shield, 15 ft. (4.6m)
CABLES & ACCESORIES
JB1 NEMA 4X junction box
STC60-L Mounting kit for submersion applications includes
1-1/2” NPT x 1” reducer, 4 feet of 1” CPVC pipe with
watertight strain relief tting and securing assembly
C42-5PXXX Interconnect cable; specify length
AM60-9765K Salt bridge kit w/ Kynar outer junction (Package of 3)
AM60-9765 Salt bridge kit w/ ceramic outer junction (Package of 3)
Protector-3 Protection shroud for submersion applications
CALIBRATION SOLUTIONS
A35-13 pH 4 Buffer, 500 mL.
A35-14 pH 7 Buffer, 500 mL
A35-24 pH 10 Buffer, 500 mL
A35-40 ORP Buffer, 200 mV, 500 mL
A35-41 ORP Buffer, 600 mV, 500 mL
Ordering Information
P60C-8 pH probe, 1-1/2” NPT threaded body
P60C-8H pH probe with Hard glass electrode
P60C-8A pH probe with Antimony electrode
R60C-8 ORP probe, 1-1/2” NPT threaded body
R60C-8-H ORP probe with Hard glass electrode
R60C-8-G ORP probe with Gold electrode

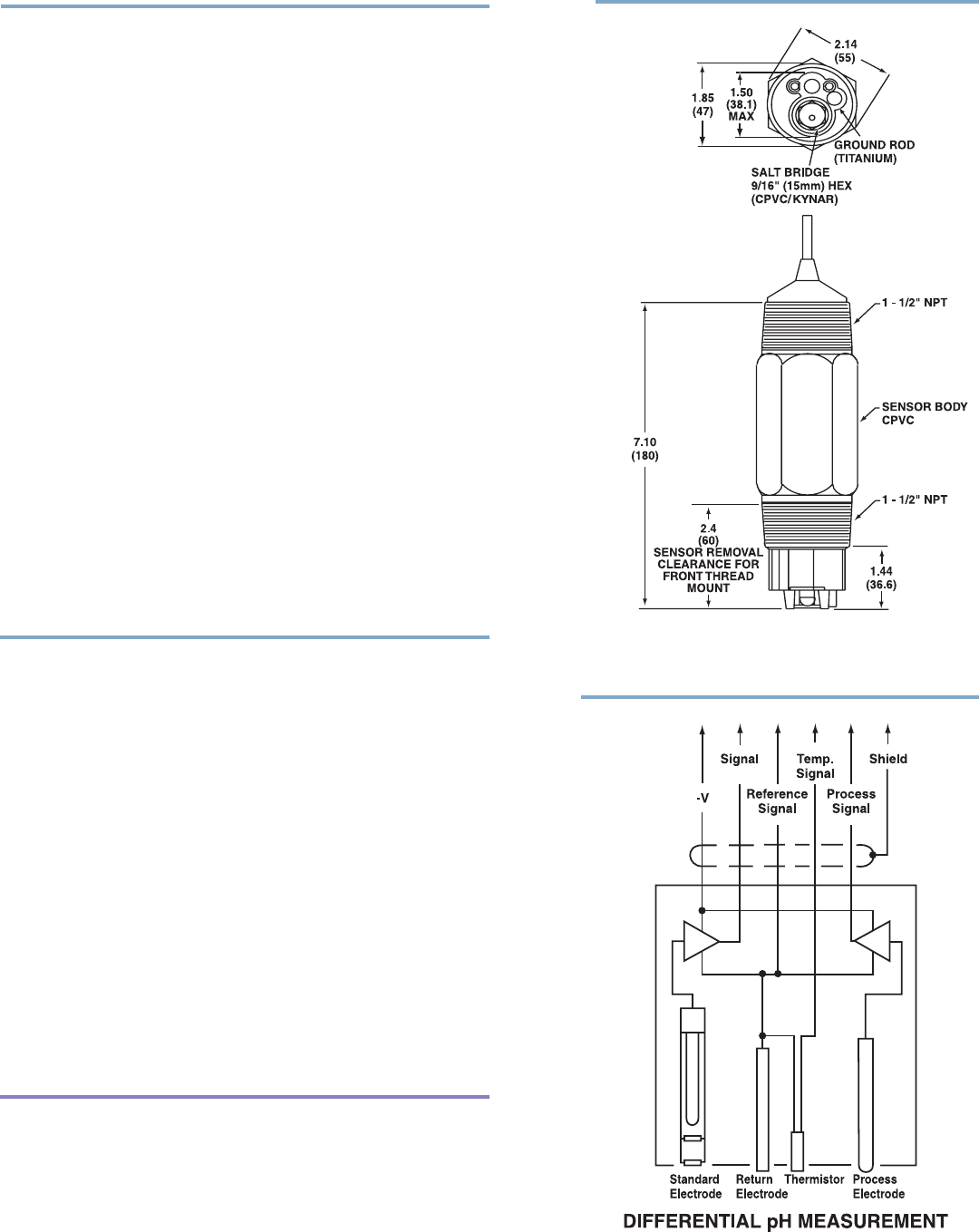

Differential Measurement
Dimensions
