Model EX80 Series Magmeter Flow Sensors Technical Data
Pipe Size 1 to 12”
Materials
Shaft/Fitting 316 SS or Brass or PVC
Electrodes Hastalloy
Housing Cast powder-coated aluminum
Electrode Cap PVDF (Kynar)
O-Ring EPDM (Viton optional)
Power
Full Power 12 - 25 VDC, 250 mA
Low Power 12 - 25 VDC, 40 mA average w
250 mA peaks
Flow Rate 0.28 - 20 ft/sec (0.08 - 6.09 m/
sec)
Temperature
Ambient Temp 0˚ to 160˚ F (-17˚ to 72˚ C)
Fixed Temp:
Brass or SS
32˚ to 200˚ F (0˚ to 93˚ C)
Fluid Temp: PVC 32˚ to 130˚ F (0˚ to 55˚ C) @ 0
psi
Pressure
Brass / SS 200 psi (13.8 bar)
PVC 150 psi (10 bar) @ 75˚ F
Maximum con-
ductivity
20 µS/cm
Calibratin Accu-
racy
+/- 1% of full scale
Output Square wave pulse, opto-isolat-
ed, 550 Hz @ 20 ft/sec
Empty Pipe De-
tection
Software, defaults to zero ow
Maximum Current 20 mA

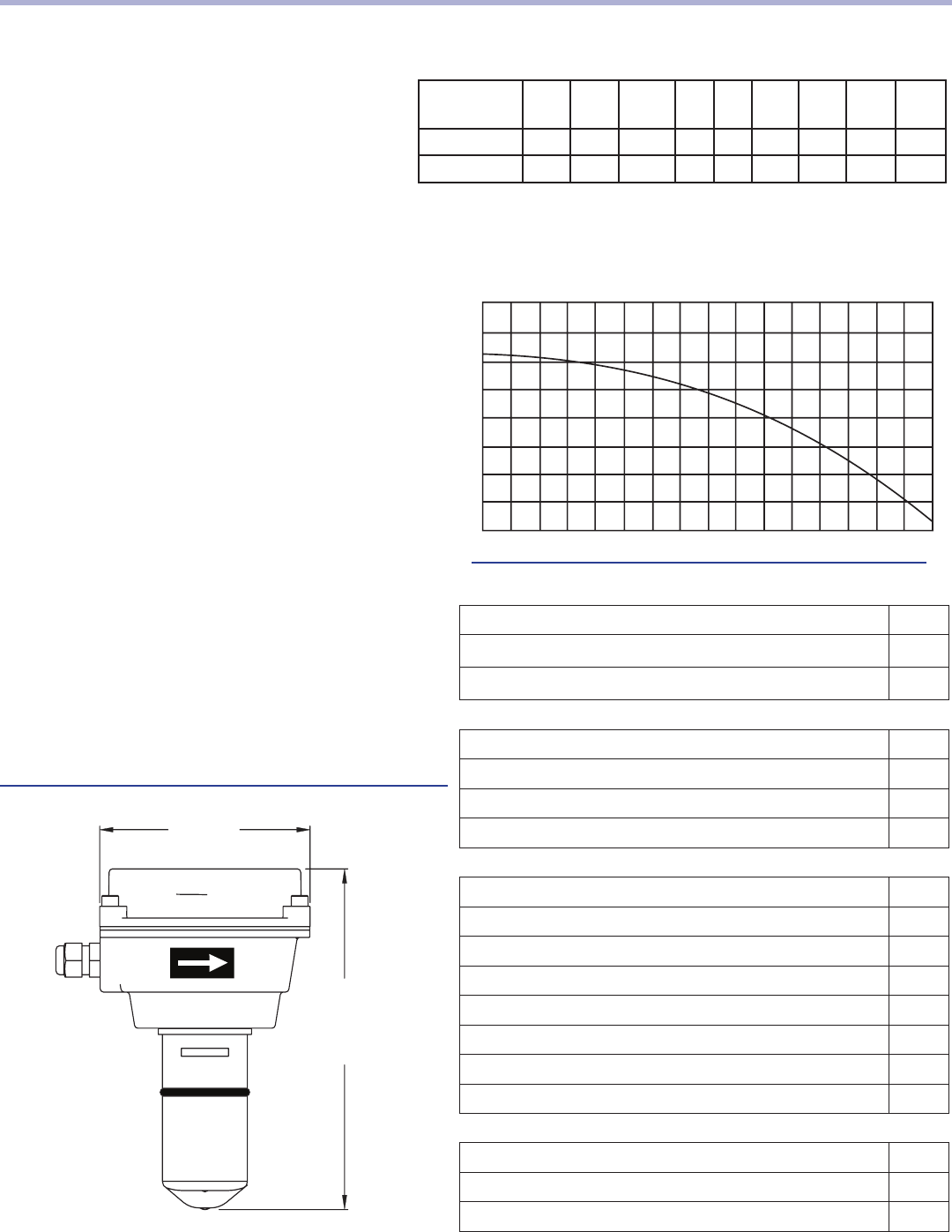

Dimensions
PVC/Polypro Working Pressure vs. Temperature
Nominal
Pipe Size
1” 1.5 2” 3” 4” 6” 8” 10” 12”
Min
0.69 1.5 2.7 6.2 11 25 43 68 99
Max
49 110 196 440 783 1760 3130 4900 7050
Order Information
50
100
150
200
60º7 0º 80º9 0º 100º 110º 120º 130º 140º
P.S.I.
Flow Range (GPM)
www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
Sensor Style
Impeller sensor ( 1/2” - 3”)
81
Impeller sensor ( 4” - 6”)
82
Impeller sensor ( 12”)
83
Sensor Material
PVC
P
Stainless Steel
S
Polypropylene
Y
Brass
B
Mounting Style
1/2” Tee tting
050
3/4” Tee tting
075
1” Tee tting
100
1.5” Tee tting
150
2” Tee tting
200
3” Saddle/Weldolet tting
300
4” Saddle/Weldolet tting
400
6” Saddle/Weldolet tting
600
Mounting Tee Material
PVC
P
304 Stainless Steel (available only for 0.5” - 2”)
S
Bronze (Not available for 6” pipes)
B
3.95”3.95”
2.80”
(TOP OF TEE)
EX81 5.85”
EX82 6.85”
EX83 7.85”
