8.2.2. No Communication with the Drive

If there is no communication with the drive, proceed with the following checks:

Check 1: Is the cabling correct?

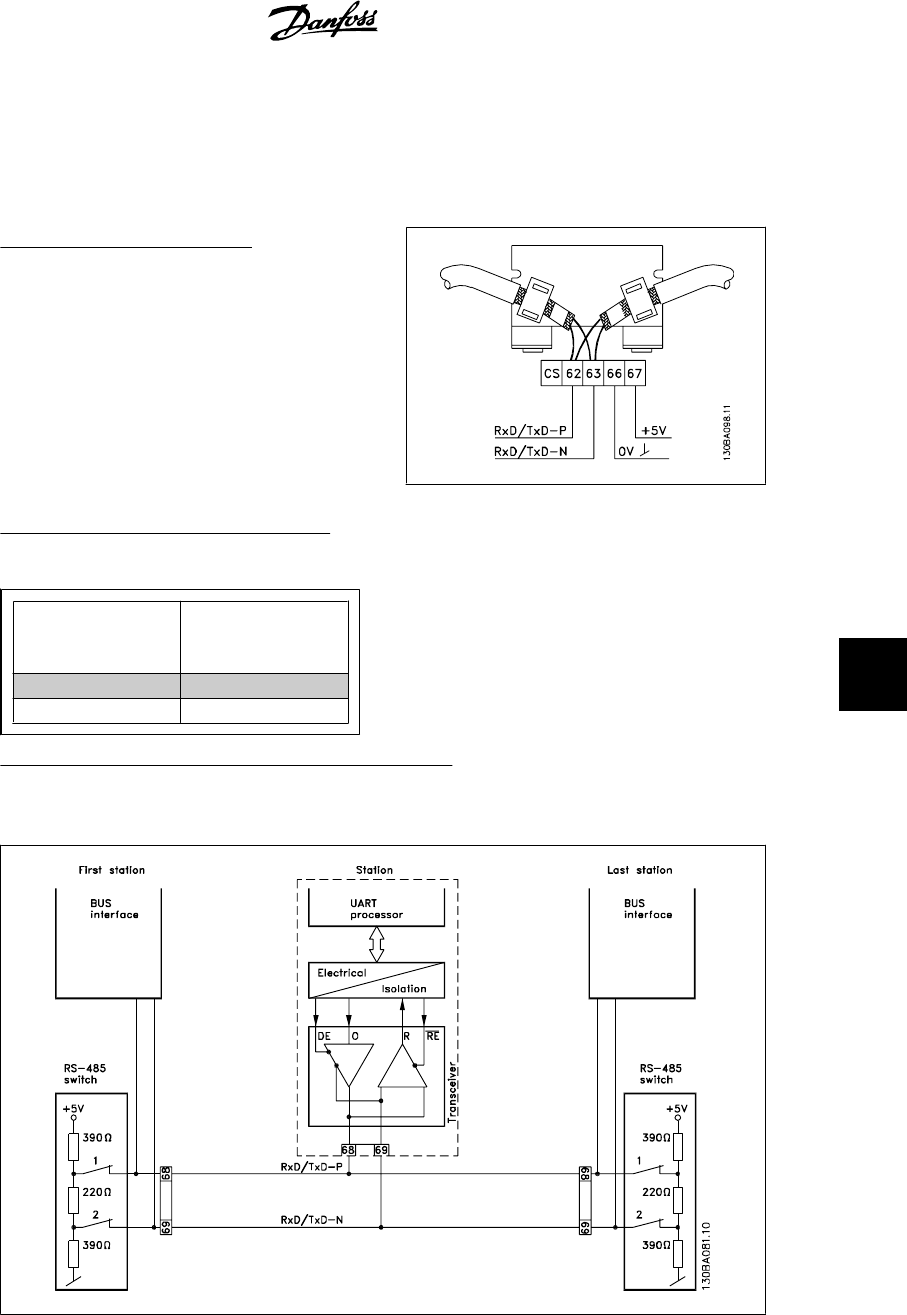

Check that the red and green cables are con-

nected to the correct terminals as shown in

the diagram below. If the cables are crossed,

no communication is possible.

62 = RxD/TxD-P red cable

63 = RxD/TxD-N green cable

Check 2: Is the correct GSD file installed?

Download the correct GSD file from http://danfoss.com/drives.

Profibus SW ver-

sion

(par. 15-61)

GSD File

1.x da01040A.GSD

2.x da02040A.GSD

Check 3: Is the bus connection terminated at both ends?

If not, terminate the bus connection with termination resistors at the initial and final nodes, as

shown in the following diagram.
