Operating instructions

2.2. How to Install Option in Drive

To install a fieldbus option in the drive you will need:

- The fieldbus option

- Fieldbus option adaptor frame for the FC 100, 200 and 300. This frame is deeper than

the standard frame, to allow space for the fieldbus option beneath

- Cable holders

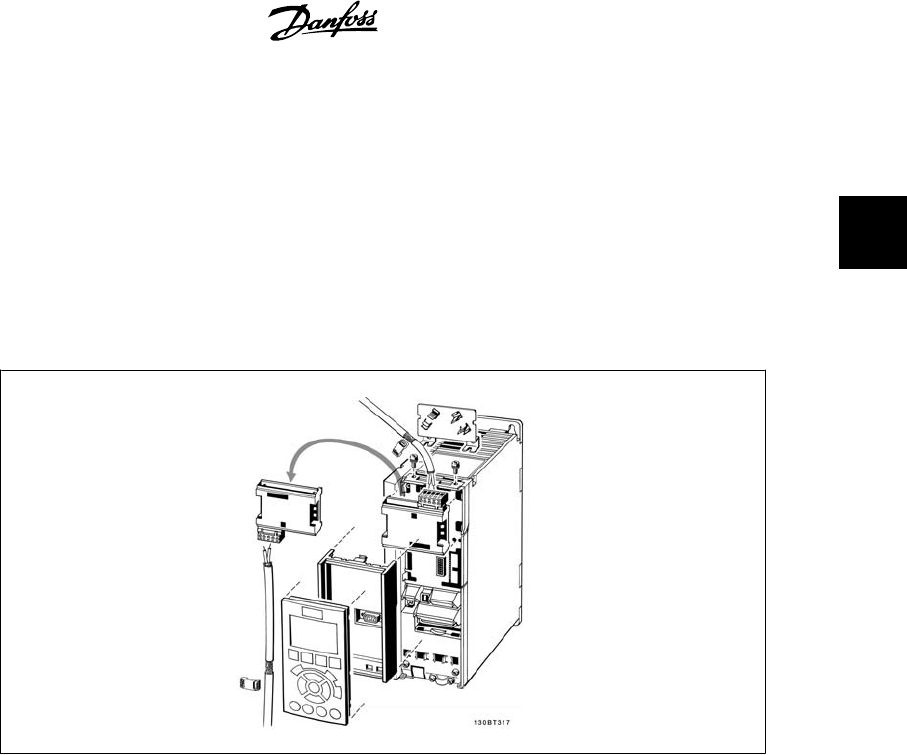

Instructions:

- Remove the LCD panel from the frequency converter

- Remove the frame located beneath and discard

- Push the option into place. Two positions are possible, with cable terminal facing either

up or down. The cable up position is often most suitable when several frequency con-

verters are installed side by side in a rack, as this position permits shorter cable lengths

- Push the fieldbus option adaptor frame into place

- Replace the LCD panel. - Attach cable

- Fasten the cable in place using cable holders

- The FC 100, 200 and 300 top surfaces have pre-bored threaded holes for attaching the

cable holders to the unit
