User`s manual

16 CONSHELF XIV USER'S MANUAL
6
8
22
21
20
19
7
5
4
1
2
3
17
18
9
10
15
14
13
12
*16
24
23
26
25
27
40 in/lbs
4.5 Nm
40 in/lbs
4.5 Nm
11
55 in/lbs
6.2 Nm
15 in/lbs
1.7 Nm
* NOTE:
When replacing a Conshelf XIV box bottom
manufactured before January ‘97 which does
not feature an external lever height adjustment
port, it is also necessary to order the port plug
and o-ring (items 17 & 18). These three items
are available in kit form, PN 108535.
NLA - No Longer Available
Part numbers in BOLD ITALICS indicate standard overhaul replacement part.
------ 108530 Conshelf XIV Second Stage w/o hose
------ 108538 Conshelf XIV Supreme Second Stage w/o hose
------ 108195 Overhaul Parts Kit, Military (1st & 2nd Stage)
------ 108592 Overhaul Parts Kit, 2nd Stage
1 ---- 108185 Decal, Conshelf XIV
2 ---- 103706 Purge Button w/ Adjustment Screw
3 ---- 102708 Purge Spring
4 ---- 107001 Box Top
5 ---- 390147 Box Top Clamp
6 ---- 834023 Clamp Screw
7 ---- 860037 Retaining Ring
8a --- 103732 Demand Diaphragm (U.S. Military Only)
8b -- 100571 Demand Diaphragm, Liquid Injection Molded
9 ---- 101919 Exhaust Tee
10---- 105139 Exhaust Valve
11 ---- 100444 Inlet Fitting
12---- 820014P O-ring (25 pk)
13---- 108510 MP Seat
14---- 104903 Poppet
15---- 108504 Spring (Standard)
---- 108514 Spring (Octopus)
16---- 108122 Box Bottom
---- 108535 Box Bottom Kit (includes 16, 17 & 18)
17---- 957025P O-ring (10 pk)
18---- 102004 Plug
19---- 107607 Washer (Cold Water)
NLA-- 845022 Washer
20---- 107605 Lever (Cold Water)
NLA - - 108513 Lever
21---- 107606 Spacer (Cold Water)
NLA-- 102517 Spacer
22---- 102510 Locknut
23---- 104913 Clamp, Black
---- 104940 Clamp, Clear
24---- 105885 Comfo Bite Mouthpiece, Black
---- 105884 Comfo Bite Mouthpiece, Clear
---- 105889 Standard Mouthpiece, Clear
---- 105879 Standard Mouthpiece, Black
25---- 820010P O-ring (25 pk)
26---- 090015 MP Hose Assy, 3/8” x 30”
27---- 820011P O-ring (25 pk)
N/S - - 108525 Octopus, w/39" Black Hose
N/S - - 108520 Octopus, w/39" Yellow Hose
Key # Part # Description
Key # Part # Description

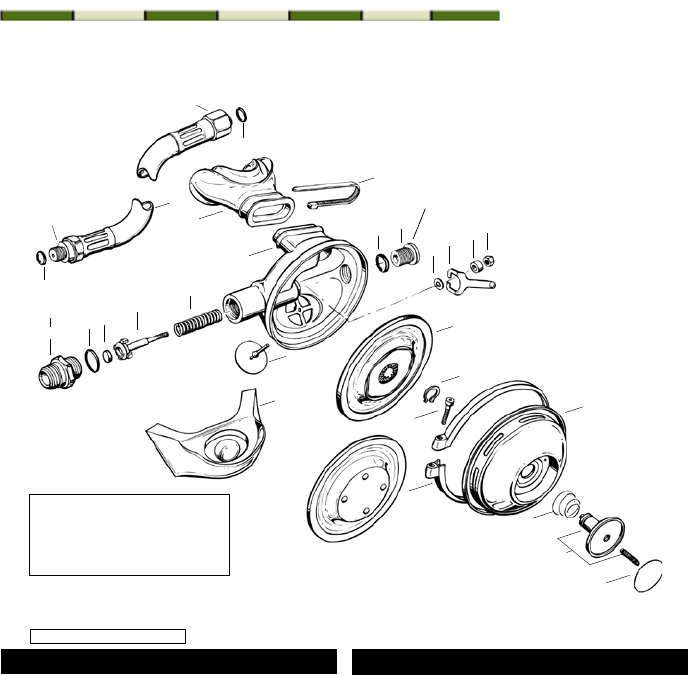

Conshelf 14 Second Stage
