Specifications

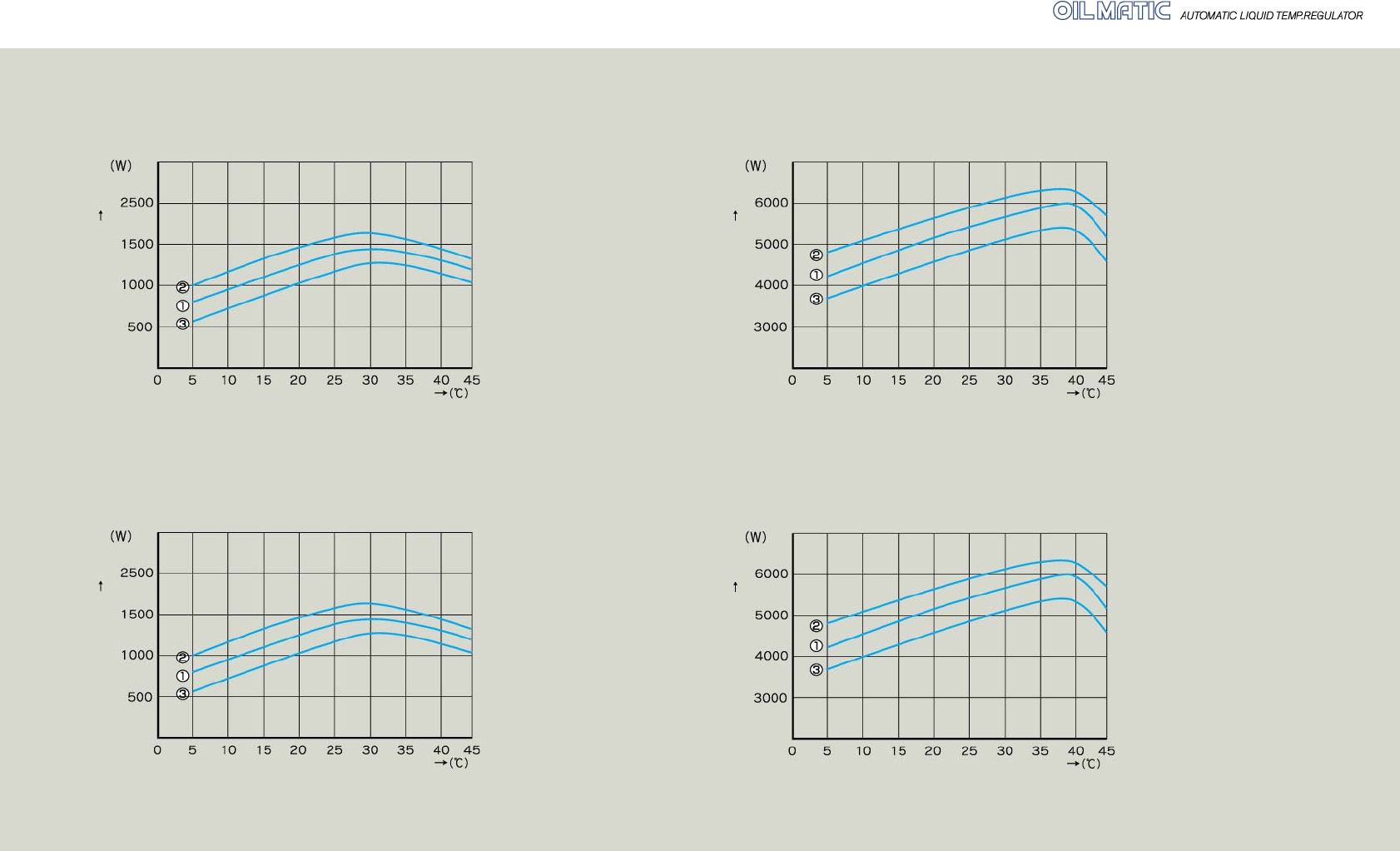

Cooling capacity diagrams Inverter models (series C, V, MR and W)
34
 - 03 cooling capacity diagram
 - 300 cooling capacity diagram
 - 07 cooling capacity diagram
 - 750 cooling capacity diagram
 - 15 cooling capacity diagram
 - 1500 cooling capacity diagram
 -22 cooling capacity diagram
 - 2200 cooling capacity diagram
Cooling capacity
Ambient temperature
Cooling capacity
② Oil temperature
= Ambient temperature + 5°C
① Oil temperature
= Ambient temperature
③ Oil temperature
= Ambient temperature
–
5
°
C
 Operating conditions
· Oil to use: ················ VG2
· Power frequency: ···· 50Hz
· Oil temperature:
······
Return oil temperature
Ambient temperature
Cooling capacity
Ambient temperature
Cooling capacity
Ambient temperature
