About model codes * We offer other models in addition to those shown below according to your specifications. Please contact us for details.
About water-cooled condenser specifications
Each of the series (*) has a “water-cooled condenser type” model that radiates condensation heat not into air but
into coolant water. This specification is effective for preventing room temperature rise in factories.
If you wish to adopt this specification, piping work for passing coolant water will be needed. Also, water quality
may be partially restricted to prevent scale adhesion. (Please see page 38.)
For details, please contact our sales representatives.
* There are some specifications that we cannot implement.

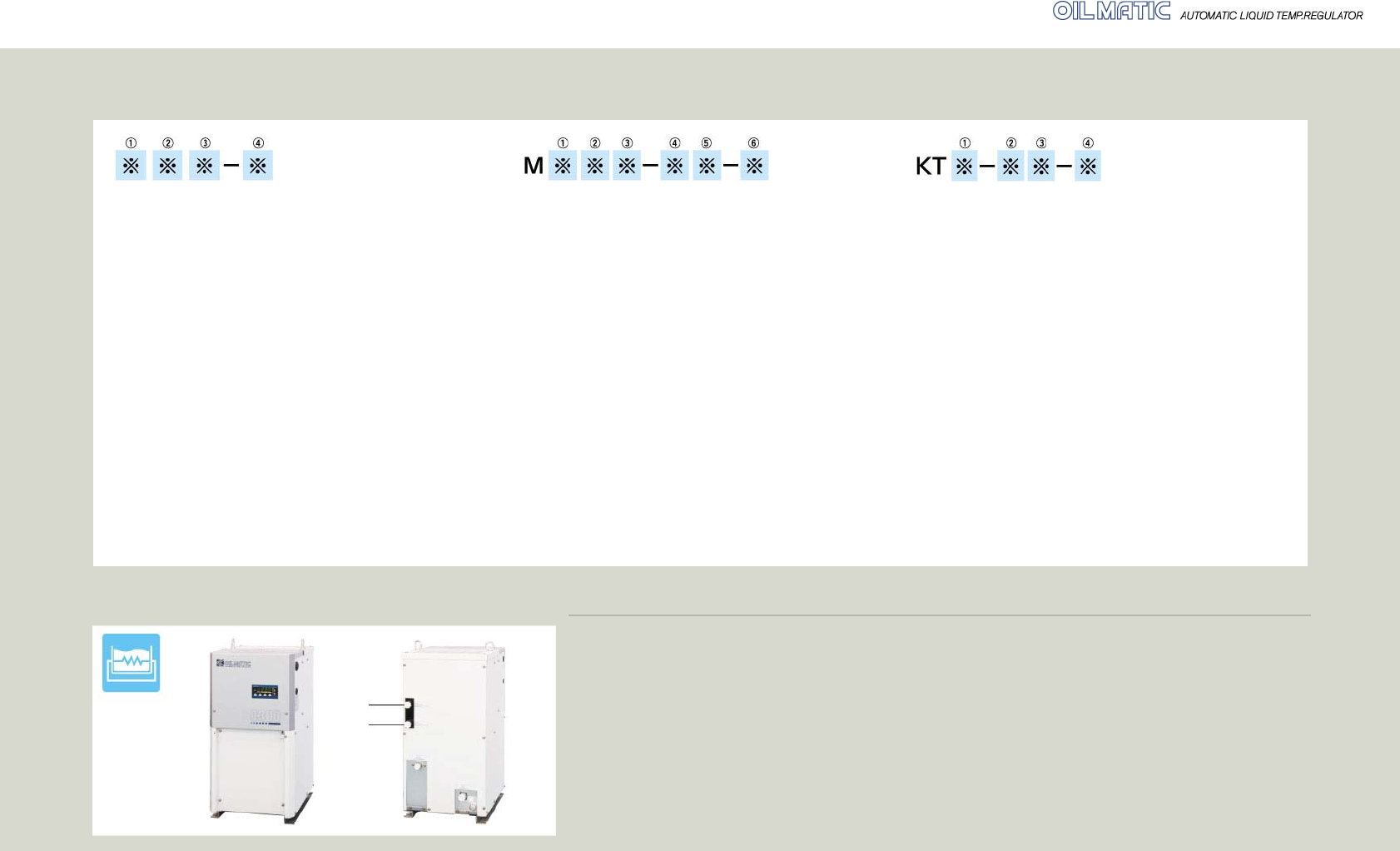

① Series (model) name ........ C: Forced circulation-type inverter
PID control model
V: Forced vortex-type inverter
PID control model
CL: Forced circulation-type gas
bypass
PID control model
W: Forced water circulation-type
inverter
PID control model
② Nominal chiller capacity .... 175 : 0.17 (kW)
300 : 0.3 (kW)
750 : 0.75 (kW)
1100 : 1.1 (kW)
1500 : 1.5 (kW)
2200 : 2.2 (kW)
③ Model change code .......... A-Z
④ Tail number code ............. Describes equipment and
specifications
L: With tank
H: With heater, etc.
① Performance .................... L: Standard
P: High precision
R: High precision and high
responsiveness
② Application ....................... S: For cooling main spindle
H: For temperature control of
operating oil
L: For temperature control of
lubricant oil
③ Type ................................. A, C (without tank)
B, D (with tank)
④ Nominal chiller capacity ... 03 : 0.3 (kW)
05 : 0.5 (kW)
07 : 0.75 (kW)
11 : 1.1 (kW)
15 : 1.5 (kW)
22 : 2.2 (kW)
38 : 3.75 (kW)
⑤ Model change code .......... A-Z
⑥ Specification code of individual option
CE: Complying with CE marking
H: With initial warm-up heater
Others
① Heat exchanging method . C: Forced-circulation type
V: Forced vortex type
② Nominal chiller capacity .. 300 : 0.17 (kW)
3 : 0.3 (kW)
5 : 0.5 (kW)
7.5 : 0.75 (kW)
11 : 1.1 (kW)
15 : 1.5 (kW)
22 : 2.2 (kW)
38 : 3.75 (kW)
③ Model change code ......... A-Z
④ Specification code of individual option
CE: Complying with CE marking
H: With initial warm-up heater
Others
Water-cooled
condenser
specifications
Coolant
water
Outlet
Inlet
