Exploded View 1

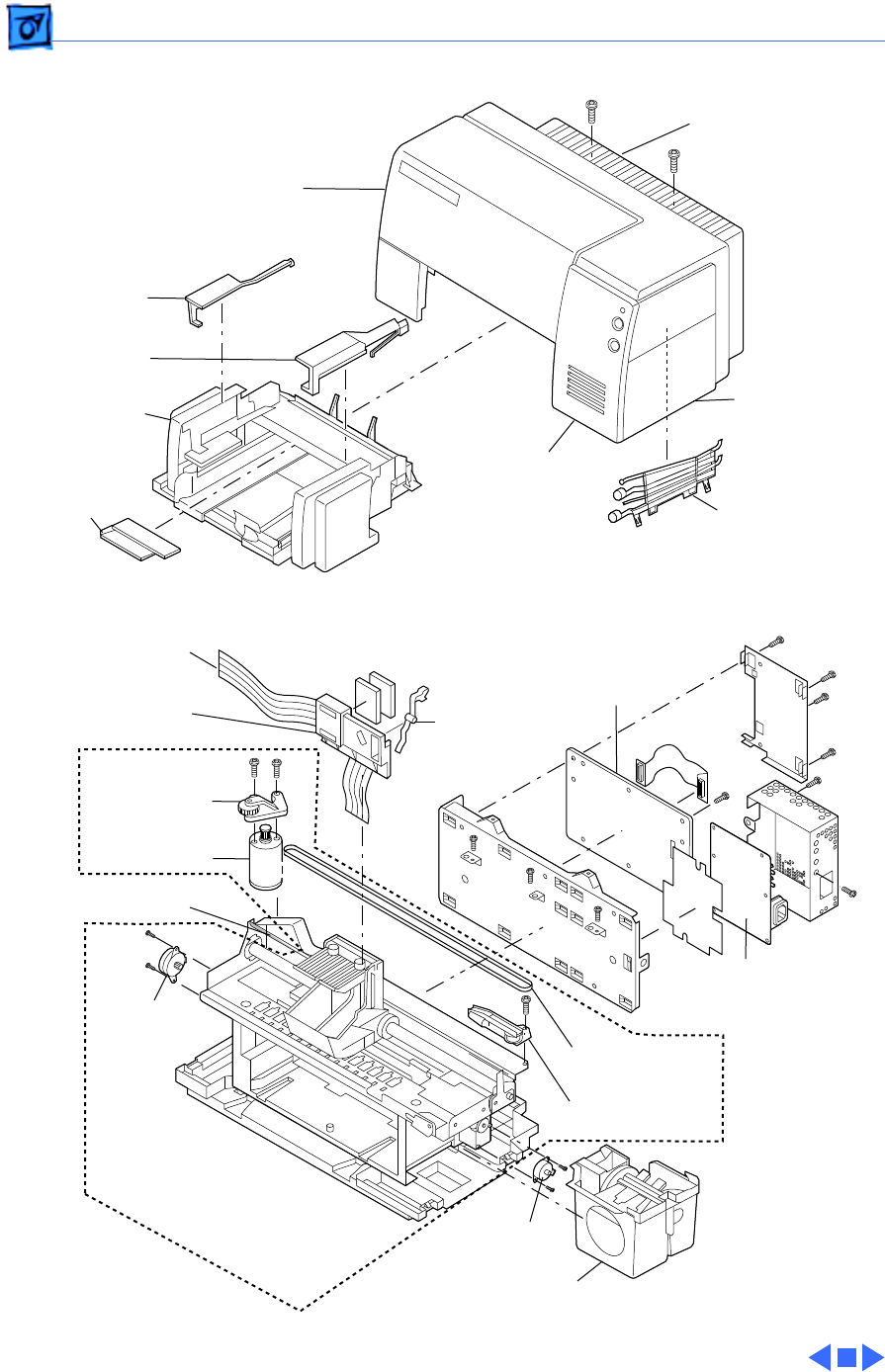

Color StyleWriter 6500 Exploded View
Logic Board
661-1334
Mechanical Assy
661-1335
Power
Supply
922-2911
Purge Unit
922-2912
Purge Motor
922-2932
Front Cover
922-2913
Side Cover
922-2919
Top Cover
922-2920
Paper Tray
922-2916
Envelope
Guide
922-2931
Left Wing
922-2924
Right Wing
922-2923
Keypad
Cover
922-2917
Carriage Belt
922-2922
Carriage Motor
922-2925
Encoder Strip
922-2926
Idler Assy
922-2928
Turnaround Assy
922-2933
Light Pipe
Assy
922-2918
Ribbon Cable
922-2927
Actuator
922-2914
Ribbon
Cable Clamp
922-2915
Paper Motor
922-2930
