Additional Procedures Interpreting the NVM (Non-Volatile Memory) Grid - 68
7 Launch the Hex
Converter tool.
Note: The converter tool
is on the Companion CD
(path: Diagnostic
Utilities/Color SW
6500 Utilities/Color
SW 6500 Hex
Converter).

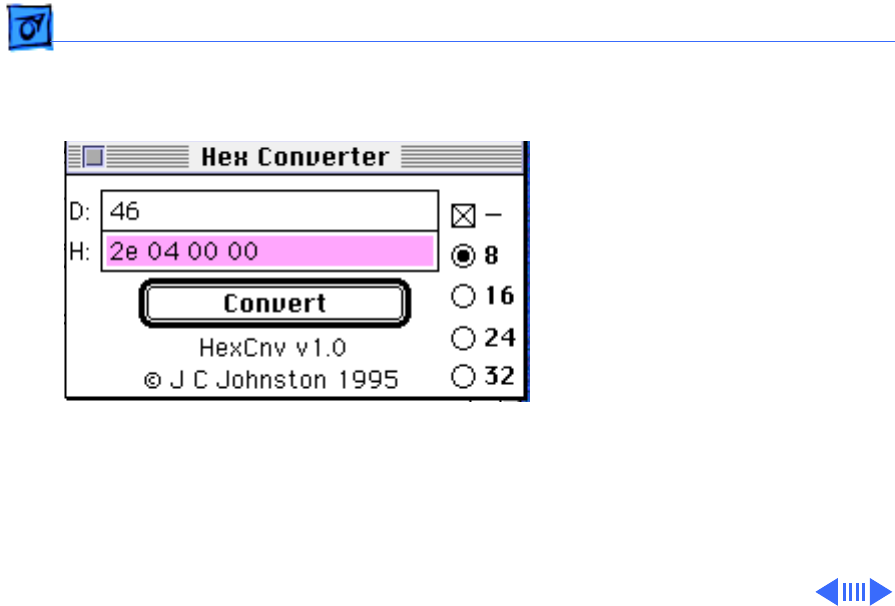

8 Type the byte
information (hex
numbers) into the Hex
converter and click
“Convert”.
