Additional Procedures Interpreting the NVM (Non-Volatile Memory) Grid - 67
6 Jot down the byte information (emphasized by the black boxes) shown on the test page
you print out. For example, on this test page: the page count bytes are 2e 04 00 00.
00
20
40
60
80
100
120
140
160
180
200
220
240
00 00 83 6f 1a 00 0a 44 65 73 6b 57 72 69 74 65 72 57 72 69
74 65 72 36 30 30 30 ff ff ff ff ff ff ff ff ff ff ff ff 17
43 6f 6c 6f 72 20 53 74 79 6c 65 57 72 69 74 65 72 20 36 35
30 30 20 ff ff ff ff ff ff ff ff ff ff ff ff ff 01 00 0f 00
ff ff 02 04 00 00 00 00 ed 02 09 02 f9 02 09 02 09 4f 2e 04
00 00 29 00 00 00 00 00 00 00 07 00 00 00 03 02 eb 02 eb 02
00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff ff ff ff ff
ff ff ff ff ff ff 02 02 b0 04 00 00 55 01 00 00 00 00 00 00
0a 02 00 74 b7 01 80 96 98 00 le 02 04 15 04 14 00 0a 0a 00
0a 00 0a 00 le 00 38 04 64 00 64 00 90 01 90 01 d0 07 d0 07
2d 3c 01 01 00 00 00 00 00 2a 2e 32 0e 07 09 09 0a 0b 0c 0d
0e 0e 2d 32 32 2d d0 07 10 27 20 00 20 00 00 01 00 01 14 ff
ab 02 ff ff ff ff ff 28 30 00 00 00 00 17 01 00
Static
Dynamic
Redundant
Asian
Unused
Power On Hours
Paper Picks
User Align
Cartridge Stalls
Paper Jams
Power Ups
Page Count (continued)
Page Count
Factory X Alignment
User X Alignment
User Y Alignment
Factory Y Alignment
Last Error Trap

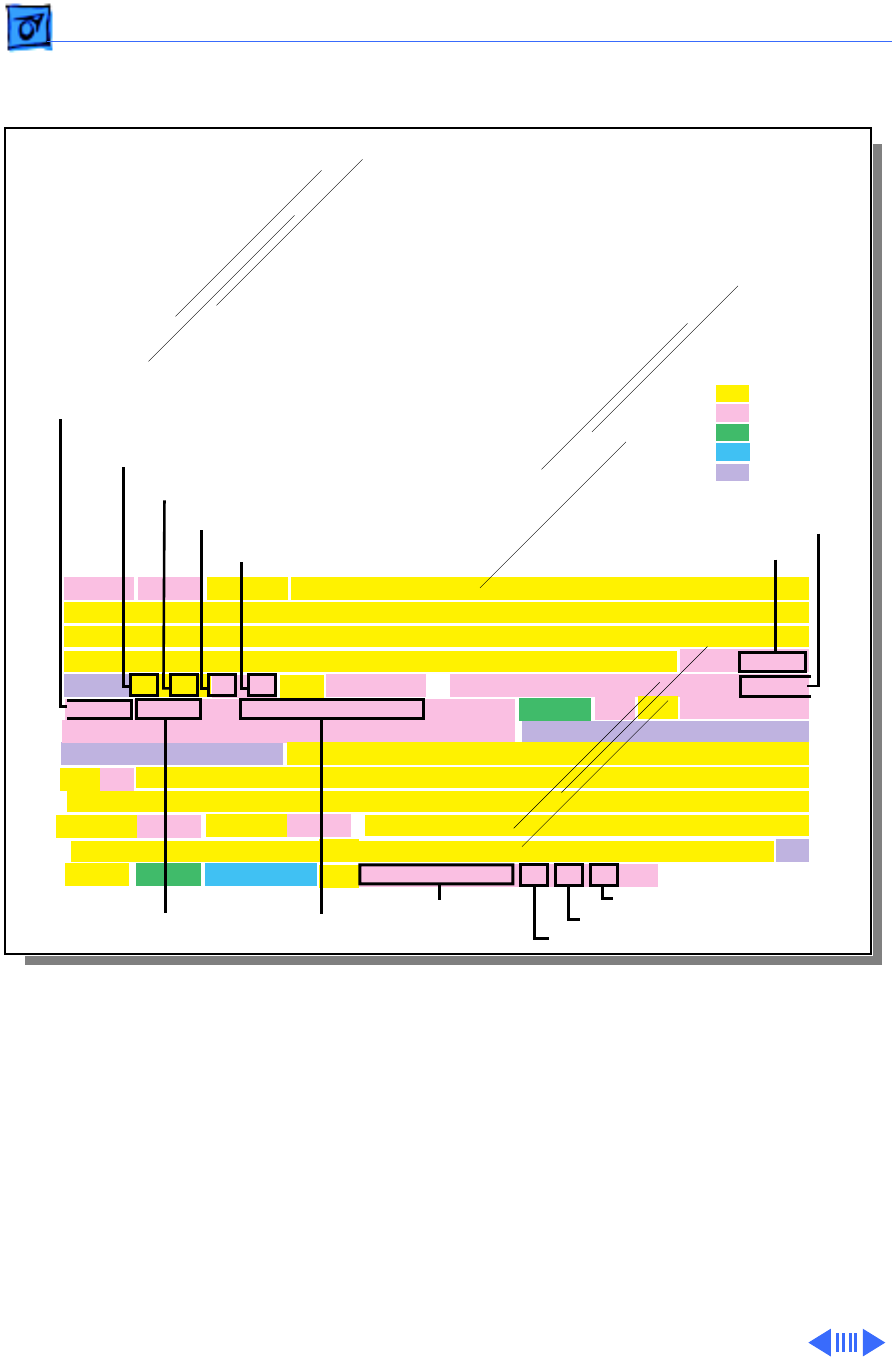

Note: Grayed Configuration in back ground used as Sample for clarity.
Transparency SAMPLE
