Additional Procedures Cleaning Information - 62
• Drive Rollers: Use water
on a clean lint-free
cloth. Do not use solvents.
• Print Cartridge Contacts:
Use water on a clean lint-
free cloth.
• Case parts: Clean with a
mild detergent such as
PK 200 or Simple Green
with water on a clean
lint-free cloth. Solvents
and water can be used to
remove stubborn
fingerprints, etc., on
external case parts.

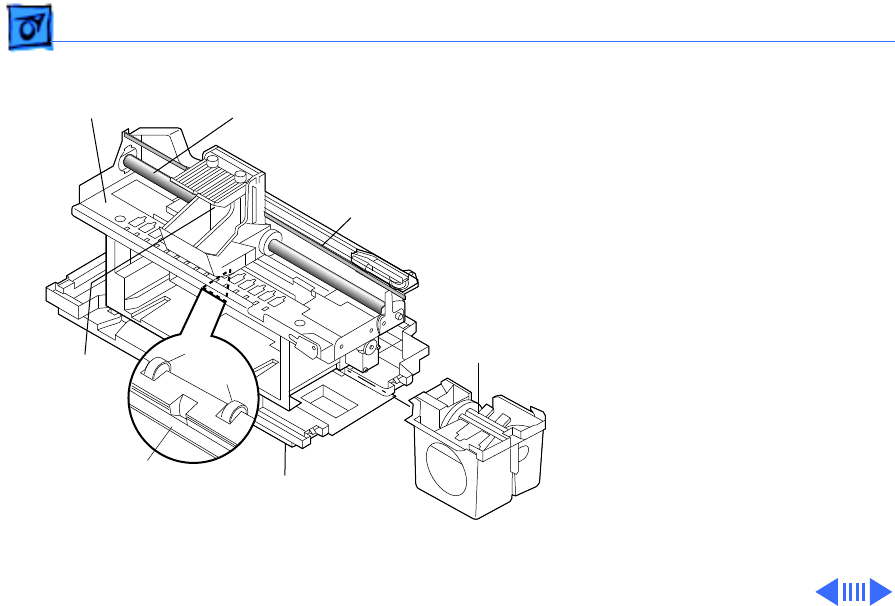

Mechanical Assy
Purge Unit
Carriage Plate
Carriage Rod
Print
Carriage
Contacts
Encoder Strip
Drive
Rollers
Pivot
Assembly
