Additional Procedures Cleaning Information - 60
Cleaning
Information
Here are some hints and tips
for cleaning mechanical
assembly parts:
• Carriage Plate: Use water
on a clean lint-free
cloth. Dry carefully,
parts left damp may rust.
• Carriage Rod: Cleaning is
not recommended. If
extremely dirty, wipe
with a clean lint-free
cloth. Use no water or
solvents.

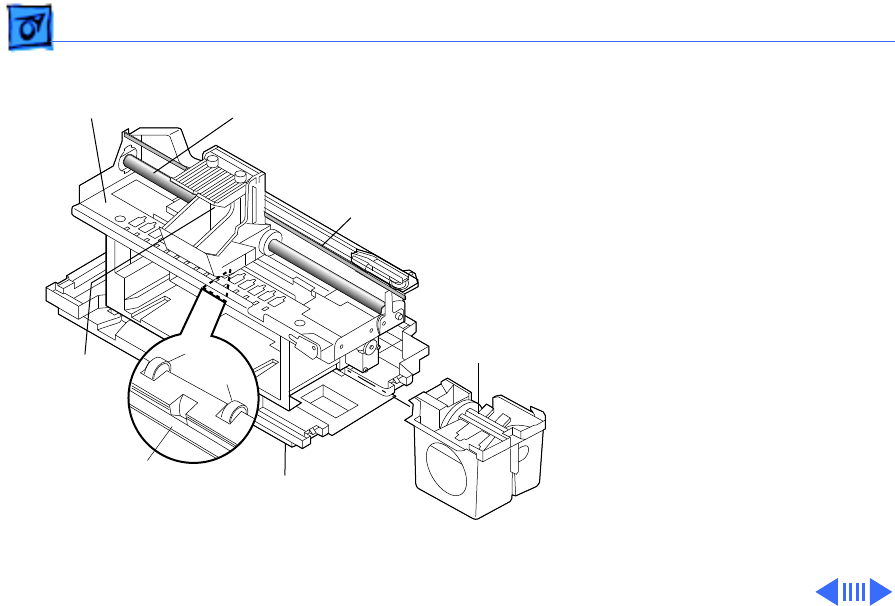

Mechanical Assy
Purge Unit
Carriage Plate
Carriage Rod
Print
Carriage
Contacts
Encoder Strip
Drive
Rollers
Pivot
Assembly
