Additional Procedures Packaging Procedure for Mechanism Repair - 59

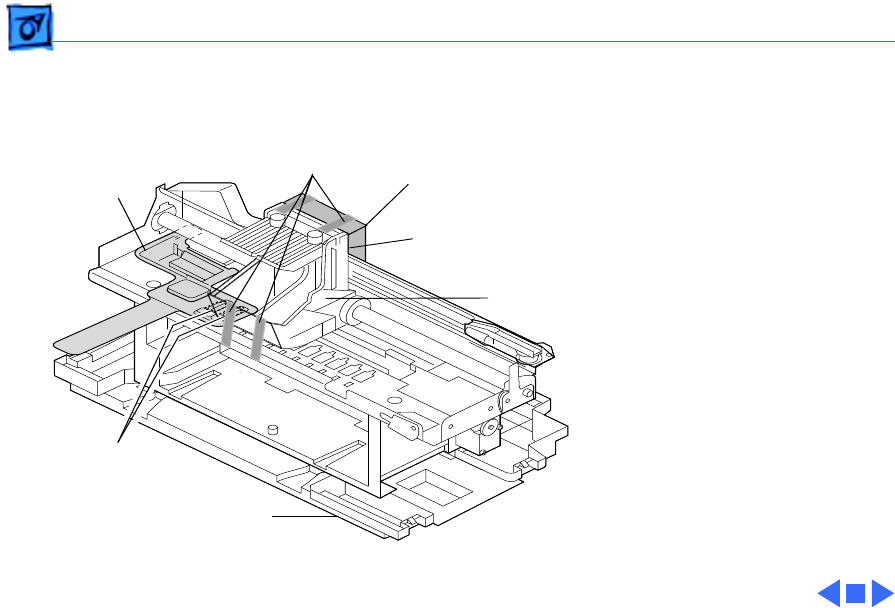

3 Move the carriage
against the carriage
restraint.
4 Tape carriage securely
to carriage plate.
5 Install the printed
circuit board cover over
the carriage printed
circuit board.
6 Tape circuit board cover
to cartridge, as shown by
shaded gray lines.
7 Place the mechanism
into the top and bottom
cushions, and then into
the box.
Carriage
Restraint
Carriage
Carriage
Printed Circuit
Board
Printed Circuit
Board Cover
4th & 5th
Slots
Carriage
Plate
Mechanical
Assembly
Tape
