Additional Procedures Packaging Procedure for Mechanism Repair - 58
Packing Instructions
1 Remove any ink
cartridges or media from
the mechanism.

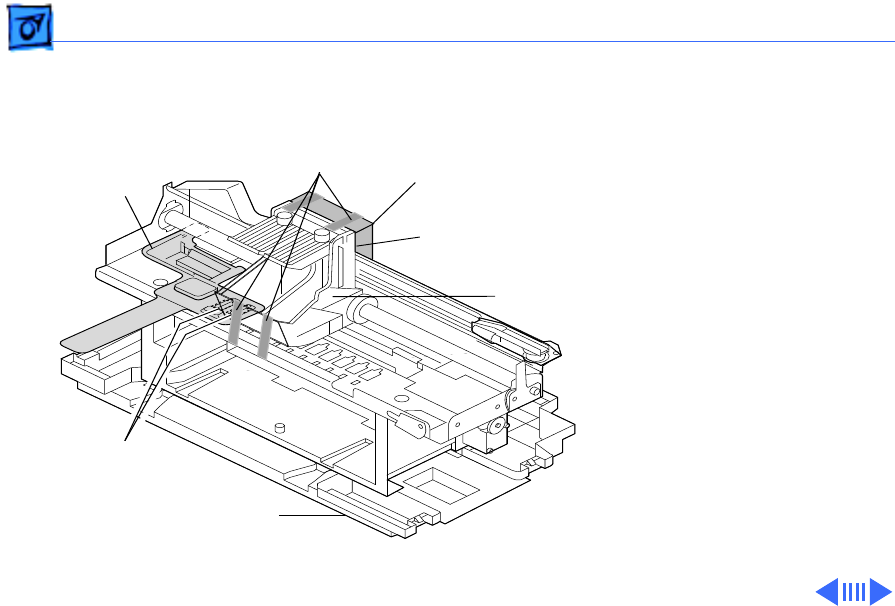

2 Place the carriage
restraint into the fourth
and fifth slots on the left
side of the carriage
plate as it faces the
operator. The long piece
on the carriage restraint
should be oriented
towards the operator.
Carriage
Restraint
Carriage
Carriage
Printed Circuit
Board
Printed Circuit
Board Cover
4th & 5th
Slots
Carriage
Plate
Mechanical
Assembly
Tape
