Additional Procedures Packaging Procedure for Mechanism Repair - 56
Packaging
Procedure for
Mechanism Repair
When shipping a mechanical
assembly, ensure that:
• the carriage and the
clutch actuator are
restrained
• the carriage printed
circuit board is protected
from ESD damage
• the mechanical assembly
is protected from shock
damage.
See graphic on next page.

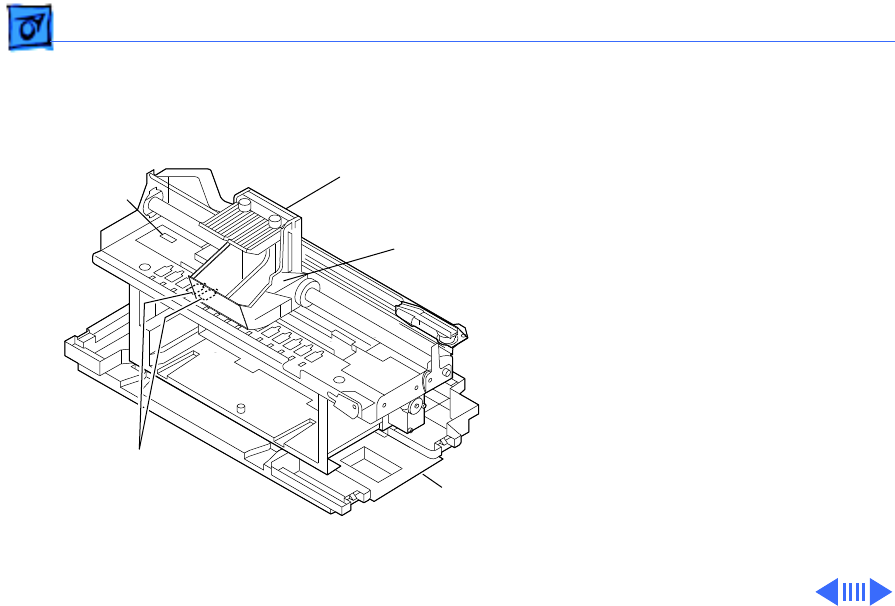

Clutch
Actuator
Carriage
Carriage
Printed Circuit Board
4th & 5th Slots
Carriage Plate
Mechanical
Assembly
