Additional Procedures Clearing Paper Jams - 53

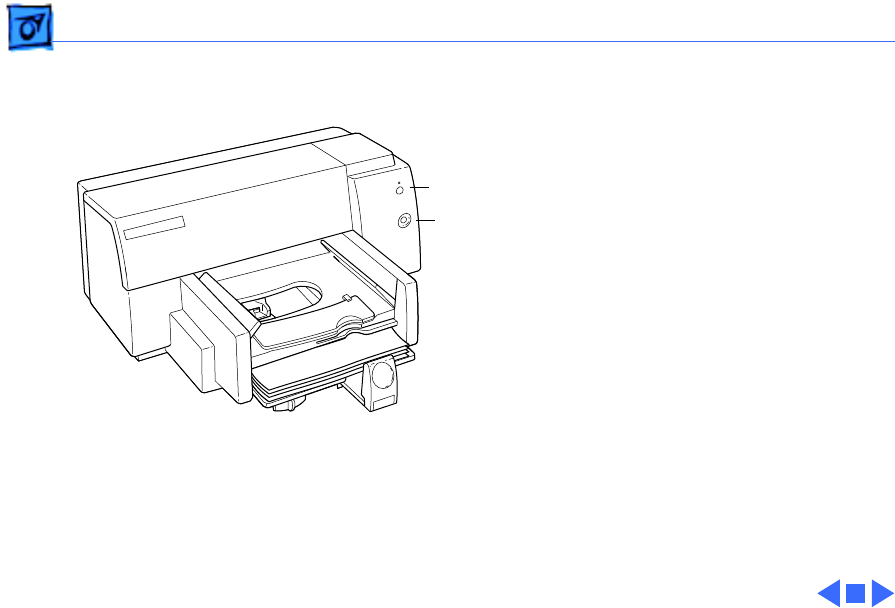

Follow these steps to clear a
paper jam:
1 With the printer on,
open the access door and
press and hold the
Resume button. This
causes the drive rollers
to move.
2 Release the Resume
button and press it again
to move the rollers in
the opposite direction.
3 When you have removed
the paper, close the
access door to print.
Resume
Power
