Additional Procedures Replacing Ink Cartridges - 32

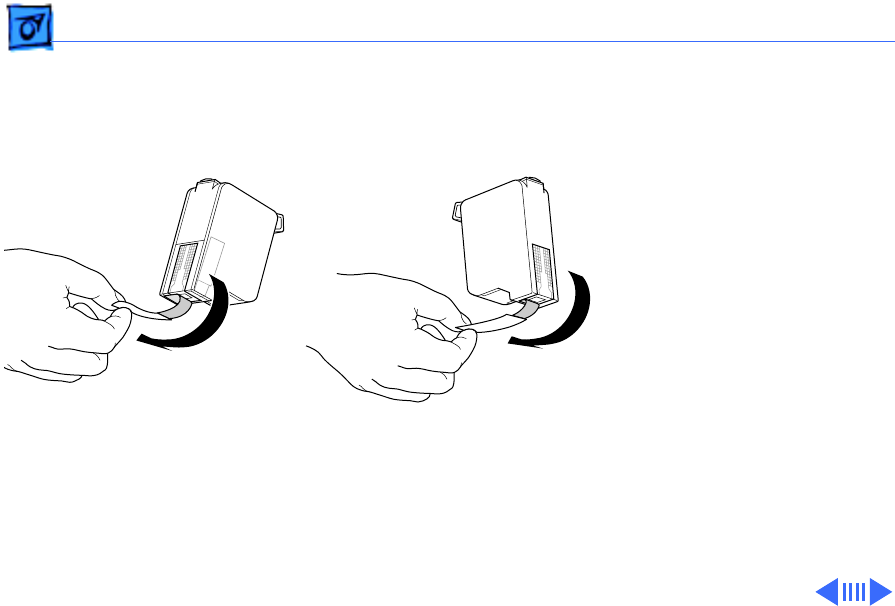

3 Grasp each cartridge by
its sides and carefully
remove the tape from the
cartridge’s print head.
Make sure you remove
the tape from both
cartridges.
Note:
You may safely
touch the colorful caps
or the black plastic, but
be careful not to touch
any other part.
Color ink cartridge Black ink cartridge
