Additional Procedures Fiber Track Cleaning - 28
2 Inspect the print head of
each ink cartridge for
ink and debris buildup.

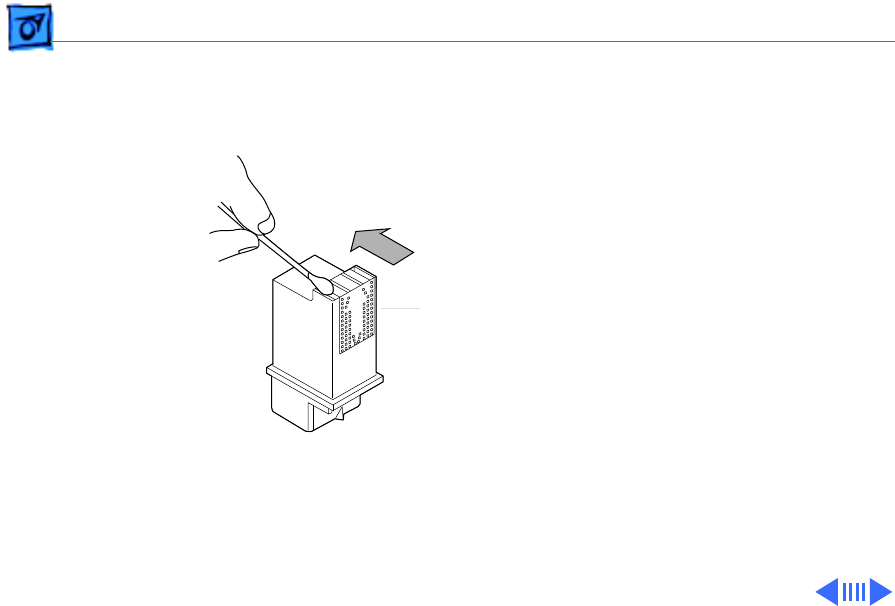

3 If there is noticeable
ink buildup or even a
single fiber, clean each
nozzle with a moistened
foam rubber swab.
Note:
Do not wipe across
or toward the nozzle
plate.
Note:
Use distilled water
and a clean foam rubber
swab (or a clean, lint-
free cloth) to clean the
print head nozzles.
Nozzle
Plate
