Additional Procedures Printer Tests - 9
Print Skew Test
The Print Skew test
measures the print margins
to ensure that paper moves
through the printer
properly and printing does
not appear tilted. To test for
print skew:
1 Print the Diagnostic
Self-Test page.
2 Fold the top edge of the
page down towards the
bottom, aligning the left
edge of the paper without
creasing the paper.

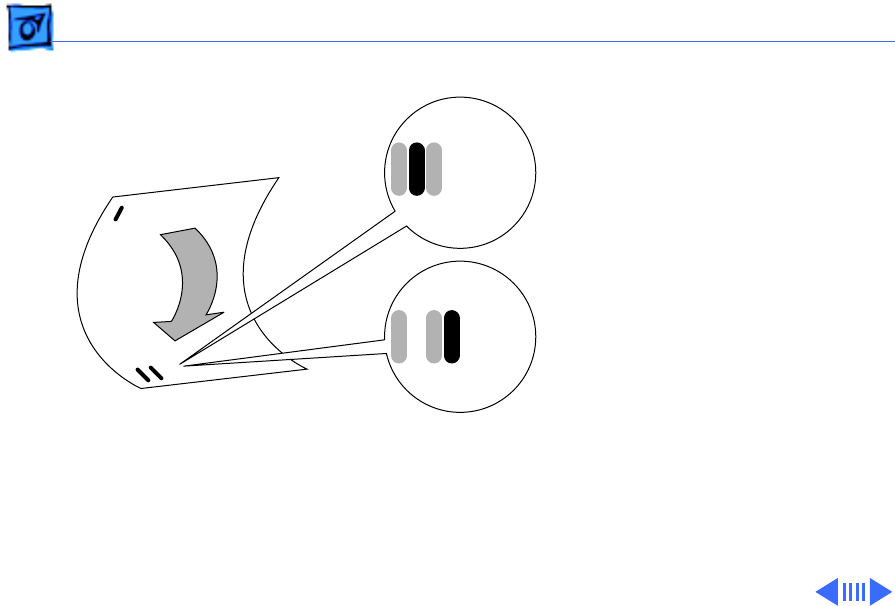

Figure: Print Skew Test Page
A
C
A
A
C
C
IN
OUT
