Additional Procedures Printer Tests - 5
To print the diagnostic self-
test:
1 With the printer on,
press and hold the Power
button.
2 Press the Resume
button 5 times.
3 Release the Power
button.
The printer will print out
the diagnostic self-test page
shown on the next page.
Resume
Power

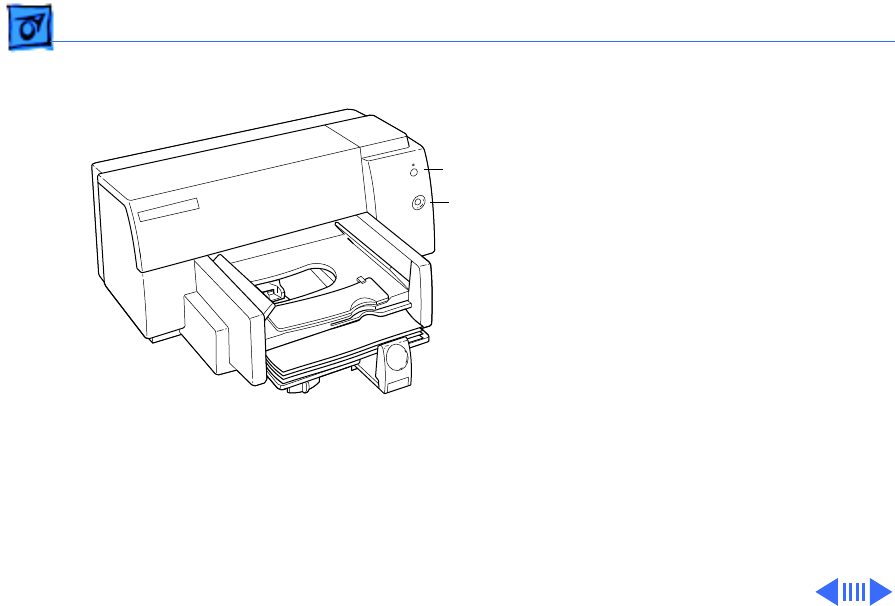

Figure: Power and Resume Buttons
