Additional Procedures Printer Tests - 2
Follow these steps to print the
self test sample page.
1 With the printer on,
press and hold the Resume
button until the Resume
light starts to flash.
2 Release the Resume button.
The printer will print one
copy of the self test sample
page (see the following page).
Resume
Power

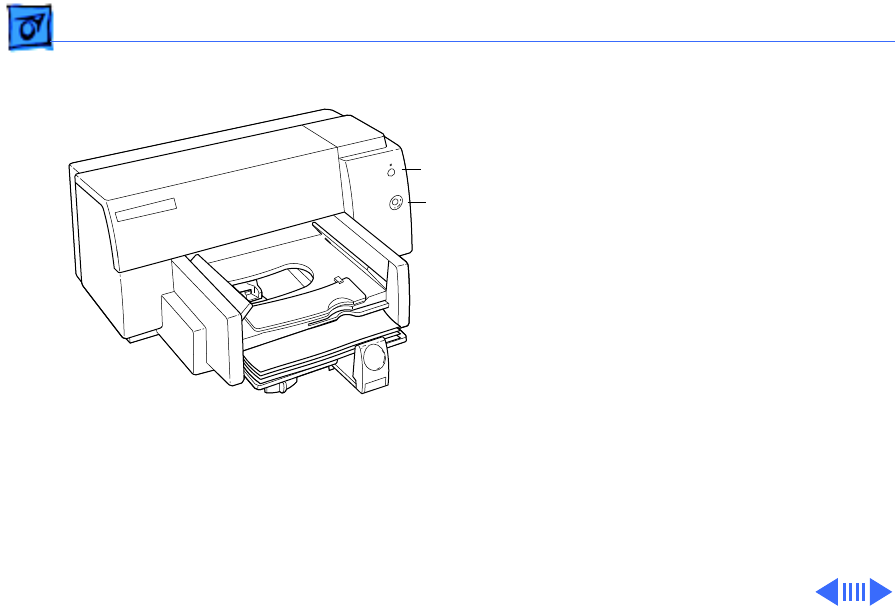

Figure: Power and Resume Buttons
