User guide

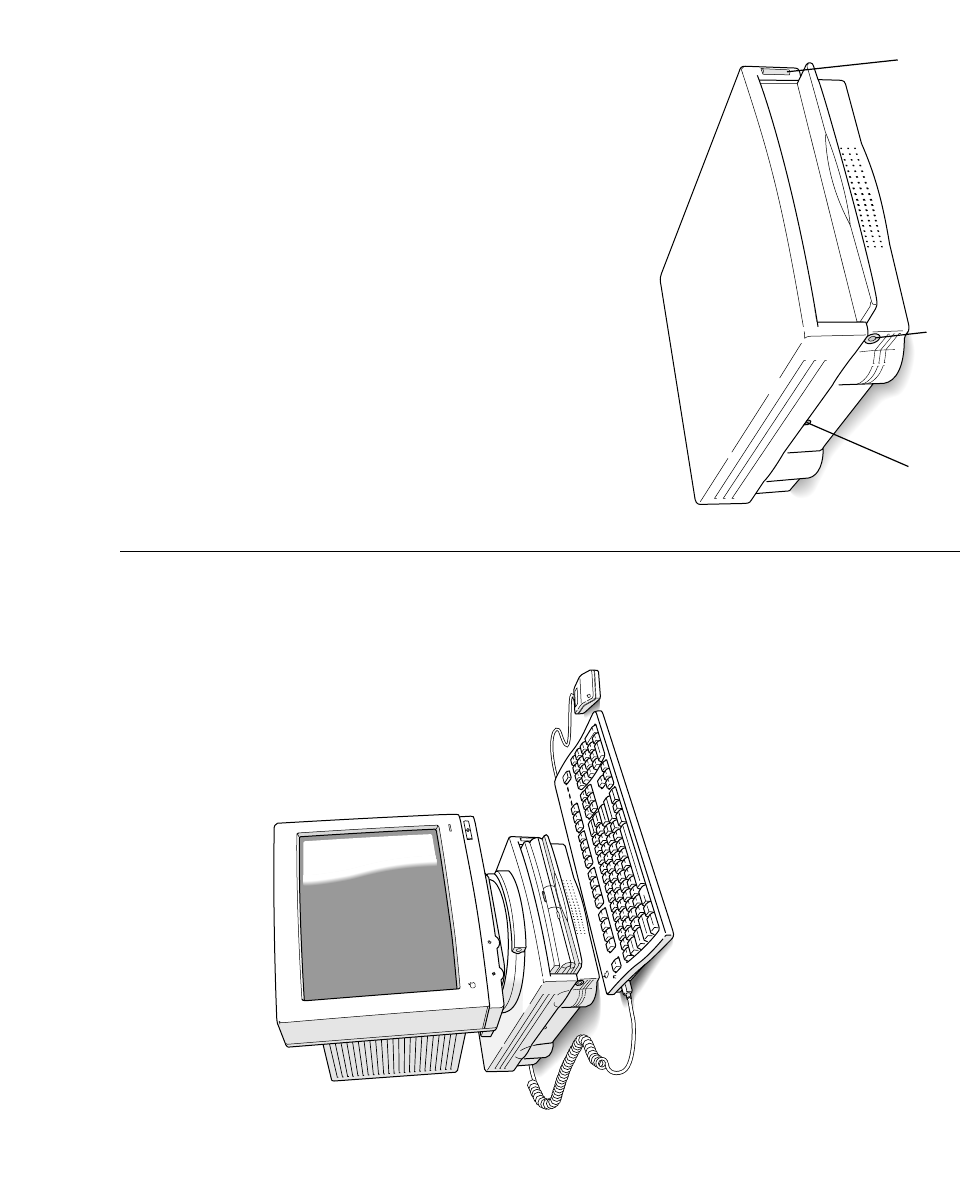

The drawing shows one of many possible PowerBook Duo

Systems. The Duo Dock can accommodate any Macintosh-

compatible monitor, keyboard, mouse, printer, hard disk drive,

CD-ROM drive, scanner, or other device.

The following sections include information about

m the features of the Duo Dock

m how to set it up

m how to use it with the PowerBook Duo

m how to install a NuBus card in the Duo Dock

Duo Dock features

The Duo Dock comes with many features built in, and several

optional features are also available. These features include:

m an internal 1.4 MB floppy disk drive ( For information about

using your floppy disk drive, see your PowerBook User’s

Guide that came with your PowerBook Duo.)

m an optional internal SCSI hard disk drive (any available

capacity that meets Apple’s specifications: up to 1" high.

An optional 500 megabyte hard disk is available for the

Duo Dock II.)

m standard ports including SCSI (with an HDI-30 connector),

monitor, printer, modem, Apple Desktop Bus (ADB), sound

in, and sound out. An EtherTalk port is also provided on the

Duo Dock II or upgraded Duo Dock.

m a separate mouse and optional microphone

Eject button

Manual eject hole

Key lock
