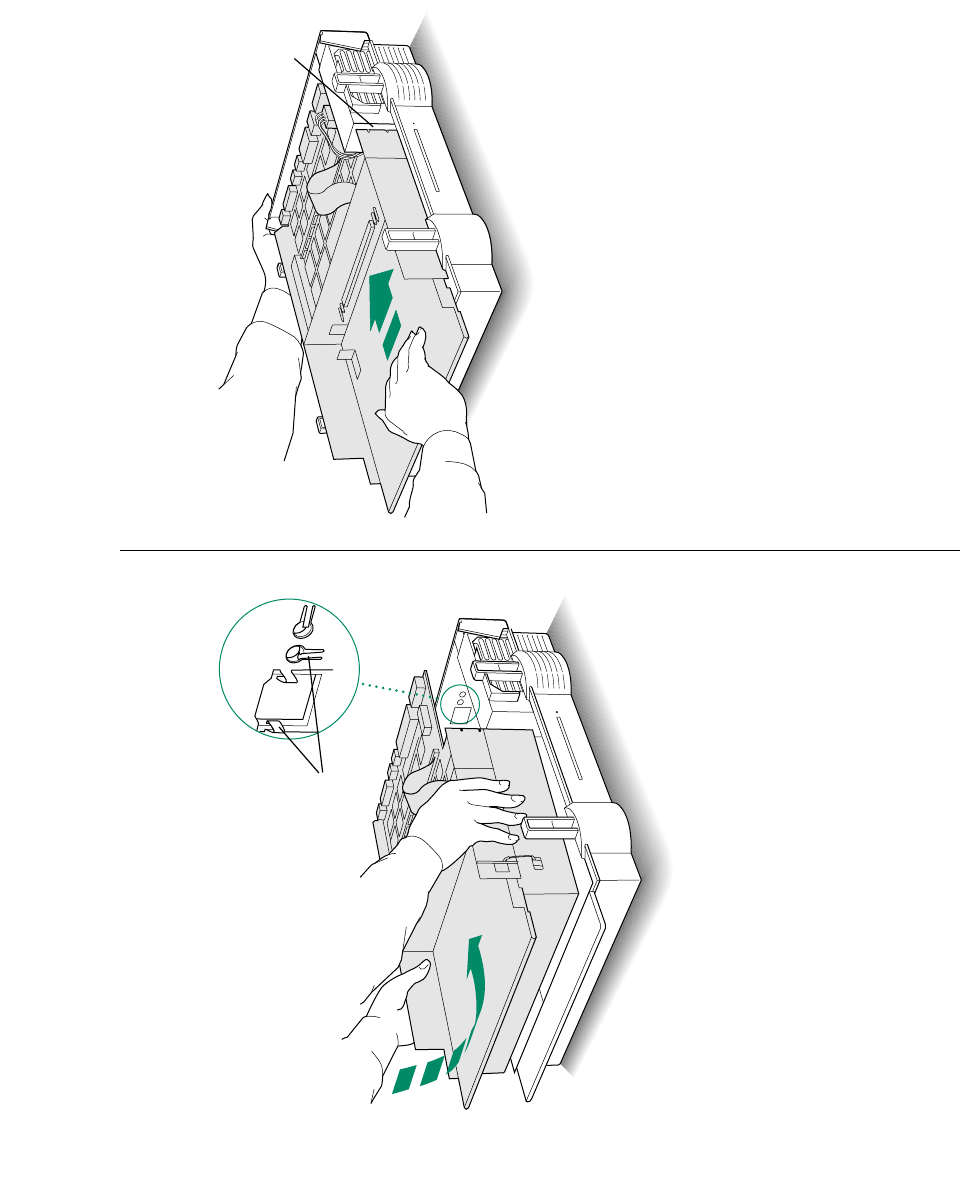

17. Turn over the subassembly and carefully put it back
into the base of the dock. Be careful not to bend the small metal fingers around the port openings.
18. Push the subassembly toward the back of the dock to
close the gap (the reverse of step 6).
19. Tighten the screws you loosened in step 5.
The screws are spring-loaded. You’ll need to exert strong downward pressure while you turn them clockwise.
20. Reconnect the power supply cable you disconnected in
step 4.
Gap
Metal fingers
