v About NuBus slots and cards: The two NuBus slots in the

Duo Dock are stacked vertically. The slots are identical, so you

can install your card in either one. If you install your card in

the upper slot (which is the lower slot when the dock is right

side up), you’ll have to remove it and reinstall it if you want to

add a second card later.

NuBus cards come in different shapes and sizes. All properly

designed cards will fit into the Duo Dock. You may find it

easier to install a large card in the upper slot rather than the

lower one. v

10. Remove the plastic NuBus card guide next to the floppy

disk drive by pulling it straight out.

The next four steps describe how to insert the card.

S Important: Handle a NuBus card by its edges only, and be

careful not to touch the pins inside the connector.

11. Lower the card into the slot.

NuBus cards have all or most of their chips on one side. Hold

the card so its chips are facing up, and the connectors on the

card and the slot are aligned. You may need to tilt the card as

you lower it into the slot.

continues .

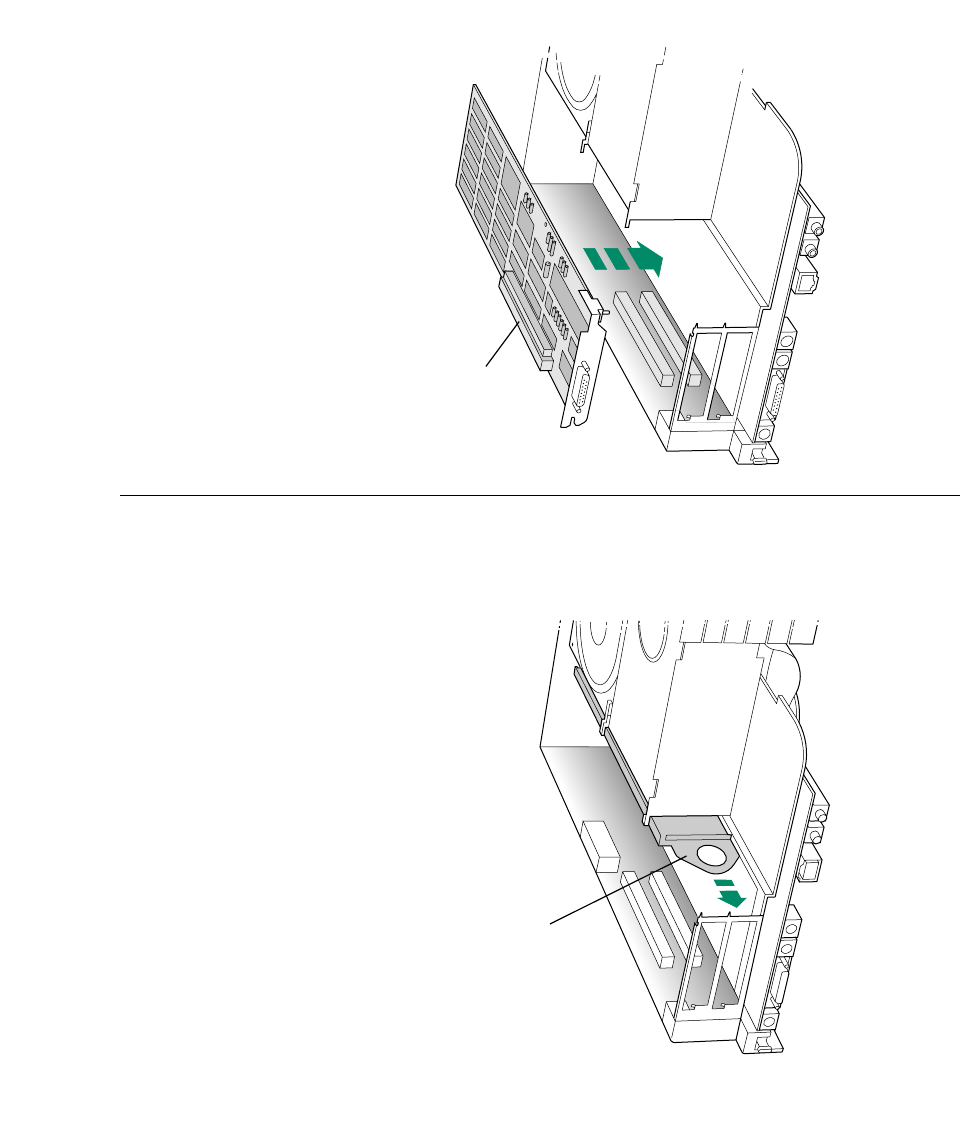

Connector

NuBus card guide
