Installing a NuBus card Installing a NuBus card in the Duo Dock is a technically challenging procedure. We recommend that you attempt it only if you are comfortable working with electronic equipment. You should read all of the following instructions before you begin. If the procedure sounds like something you don’t want to do
yourself, any Apple-authorized service provider can install a NuBus card for you.
Getting ready You need the Duo Dock, a NuBus card, and a flat-blade screwdriver. v If your system is already set up: Tu rn off, disconnect, and
remove all equipment attached to the dock, but do not unplug the power cord that connects the dock to an electrical outlet or power strip. v

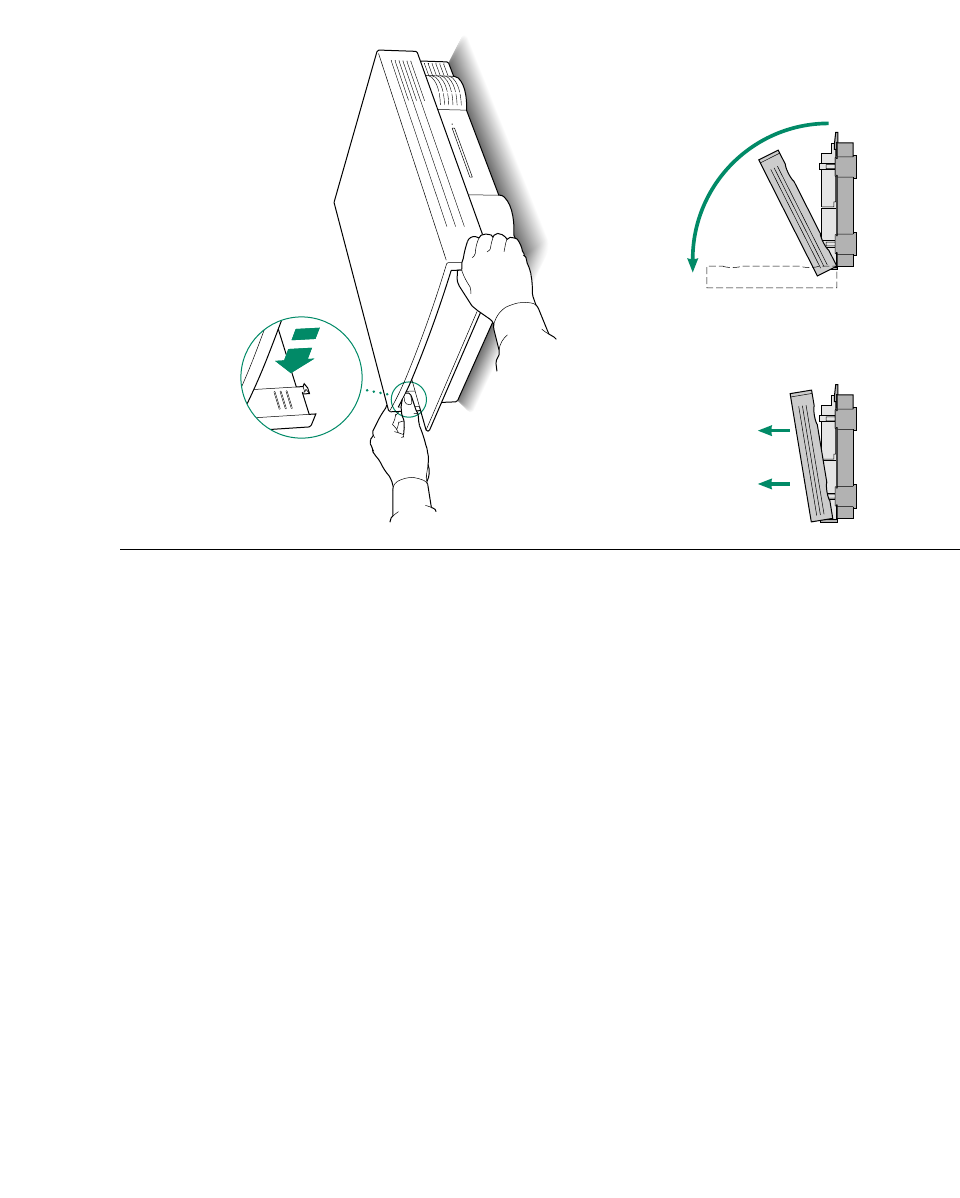

Installing the card 1. Unlatch the top cover of the dock by pinching the
grooved surface just inside the front opening.
2. When the latches release, tilt the cover upward slightly
(to about a 30° angle) and then lift the angled cover
straight up to remove it.
continues .
This Not This
