Take Apart
Speaker & Floppy Cable
-
4
1
7

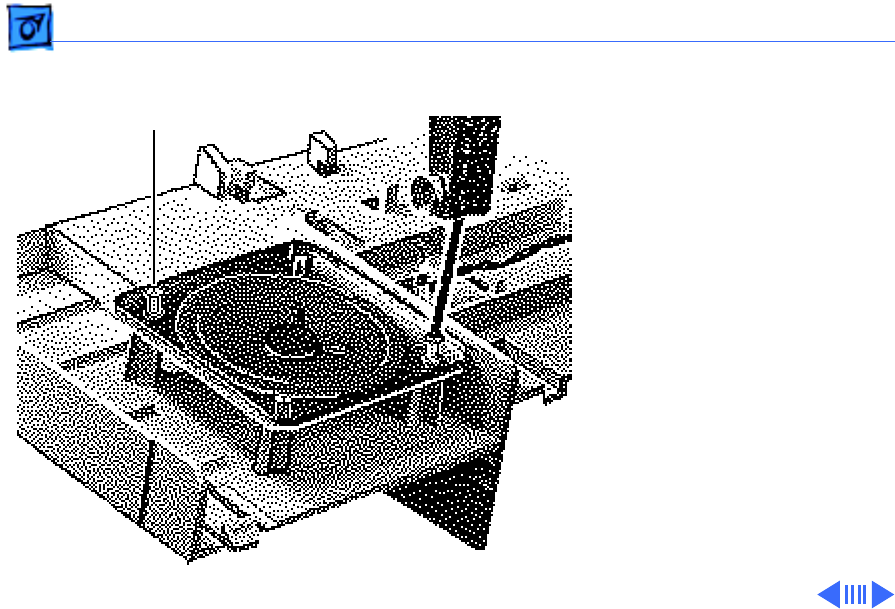

Remove the two torx
screws from the
speaker.
8
Remove the speaker
cable from its routing
guides.
9
Lift out the speaker.
Torx Screws
1
...
...
