Take Apart
DOS Compatibility Card
-
17
1

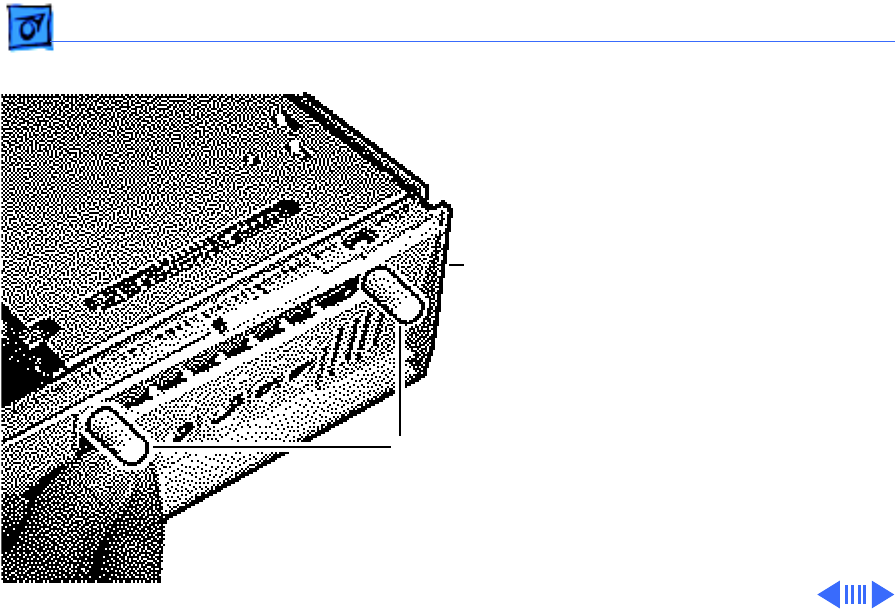

Remove the
thumbscrews that
secure the DOS
Compatibility
card to the
computer’s rear panel.
Rear
Panel
Thumbscrews
1
...
...
