Exploded View
Take
Apart
Logic
Board -
1
4
7

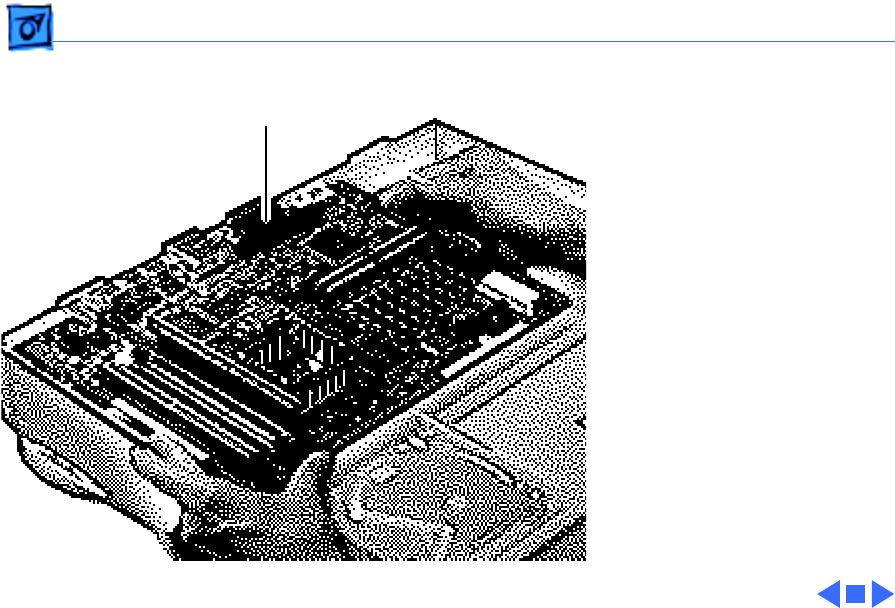

Remove
the logic board.
Replacement Note:
Slide
the hard drive and
optional CD-ROM drive
forward. Connect the
floppy drive cable before
replacing the logic
board.
Logic Board
