Upgrades
Power Macintosh Upgrade
-
3
1
3

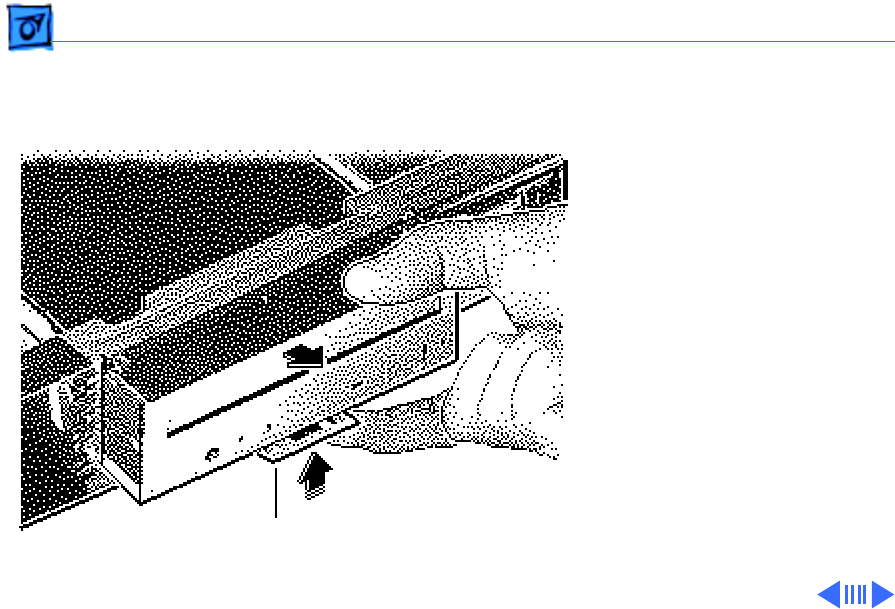

Press up on the tab and
slide out the
CD-ROM
drive.
CD-ROM Drive
1
...
...
