Table Of Contents
Power Macintosh 6100/WS 6150
Basics
Power Macintosh System Overview
Key Points
Troubleshooting Tips
HDI-45 Pinouts
Rear Panel Connectors
Logic Board Connectors
Apple RAID Software
Specifications
Processor
CPU
6100/60 & 6150:
6100/66 & 6150/66:
Memory
RAM
6100/60 & 6150:
6150/66:
ROM
VRAM
6100/60, 6100/66, 6150 & 6150/66:
6100/60AV & 6100/ 66AV:
Cache
6100/60 & 6150:
6100/66:
Clock/Calendar
Disk Storage
Floppy Drive
Hard Drive
6100/60:
6100/66:
6150/66:
CD-ROM Drive
6100/60:
6100/60AV:
6100/66 & 6100/ 66AV:
6150/66:
I/O Interfaces
SCSI
Serial
Apple Desktop Bus
Expansion Slot
6100/60, 6100/66, 6150 & 6150/66:
6100/60AV & 6100/ 66AV:
Ethernet
Sound
Sound (continued)
Video
6100/60, 6100/66, 6150 & 6150/66:
Video (continued)
6100/60AV & 6100/ 66AV:
I/O Devices
Keyboard
Mouse
Microphone
6100/60, 6150 & 6150/ 66:
6100/60AV, 6100/66 & 6100/66AV:
Video Display
Video Display
Video Display (continued)
Electrical
A/C Line Input Voltage
Input Line Frequency
Input Power
Power Supply DC Output
Physical
Dimensions
Weight
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Troubleshooting
General
Symptom Charts
Power Supply
System
Video
Floppy Drive
Hard Drive
CD-ROM Drive
Peripheral
Miscellaneous
Global Village Modem “Busy Serial Port”
Take Apart
Top Housing
Power Supply
Logic Board
DOS Compatibility Card
Floppy Drive
Hard Drive
CD-ROM Drive
Bottom Housing Assy
Speaker & Floppy Cable
Additional Procedures
Battery Verification
Battery Replacement
Reset Logic Board
Upgrades
Expansion Cards
CD-ROM Upgrade
DOS Compatibility Upgrade
Power Macintosh Upgrade
Exploded View
Upgrades
CD-ROM
Upgrade -
8
3

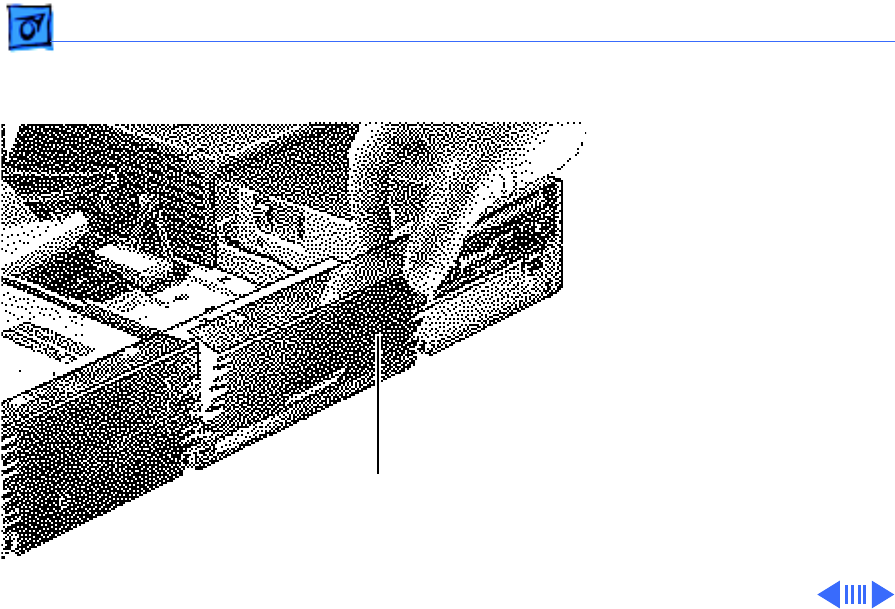

Pry off the metal 5.25"
drive bay shield.
5.25'' Drive Bay Shield
1
...
...
