Upgrades
CD-ROM
Upgrade -
7
1

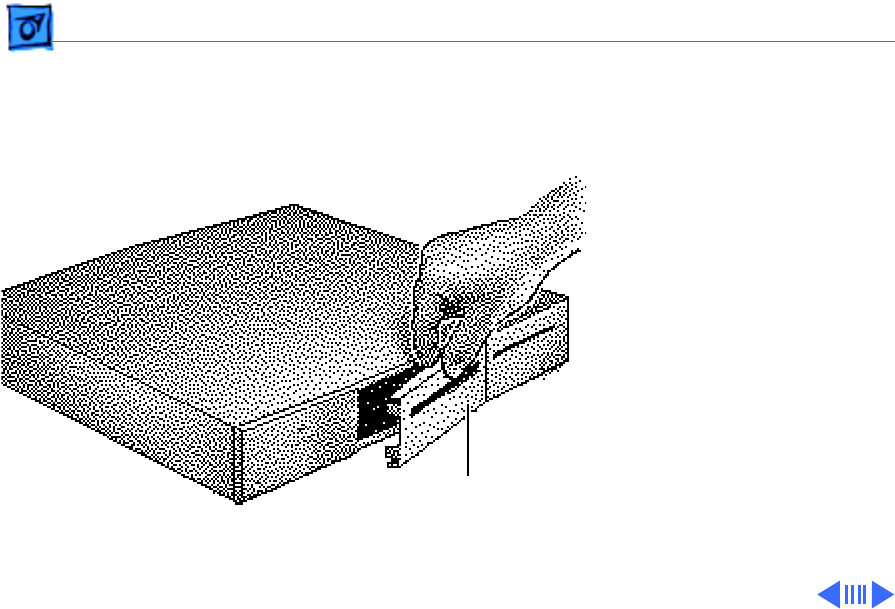

Remove the blank CD-
ROM drive b
ezel from
the top housing.
2
Install the slotted CD-
ROM drive bezel in the
top housing.
Slotted CD-ROM
Drive Bezel
