Page 1Rev. 062118

DiscountRamps.com • 1-888-651-3431

General Guidelines

• It is the user’s responsibility to read and follow all instructions.

• Keep these instructions with the product at all times and review before each use.

• It is the responsibility of this product’s owner to furnish the instructions to any person that borrows

or purchases the product.

• Inspect the product before use to ensure it is assembled properly and all parts are in safe working

order and free of defects.

• Never modify this product in any way.

• All circumstances cannot be addressed in these instructions. Please use common sense and

practice general safety measures when using this product.

• Parts and/or instructions are subject to change without notice.

Safety

• Distribute load evenly

• Do not exceed the lesser of (1) hitch manufacturer’s tongue weight rating, (2) vehicle manufactur-

er’s rear load limit, or (3) 500 lbs total cargo.

• Do not transport people or animals on the carrier

• Do not allow cargo to block taillights/vehicle safety equipment

• Securely strap all cargo to the carrier and check frequently during travel

• Do not carry loads that are wider than the carrier platform

• Carrier hitch pins and cotter pins must be secured before each use

• Be certain to secure all items to the carrier

• Do not transport ammable/combustible items on the carrier

• Trailer hitch pin sold separately

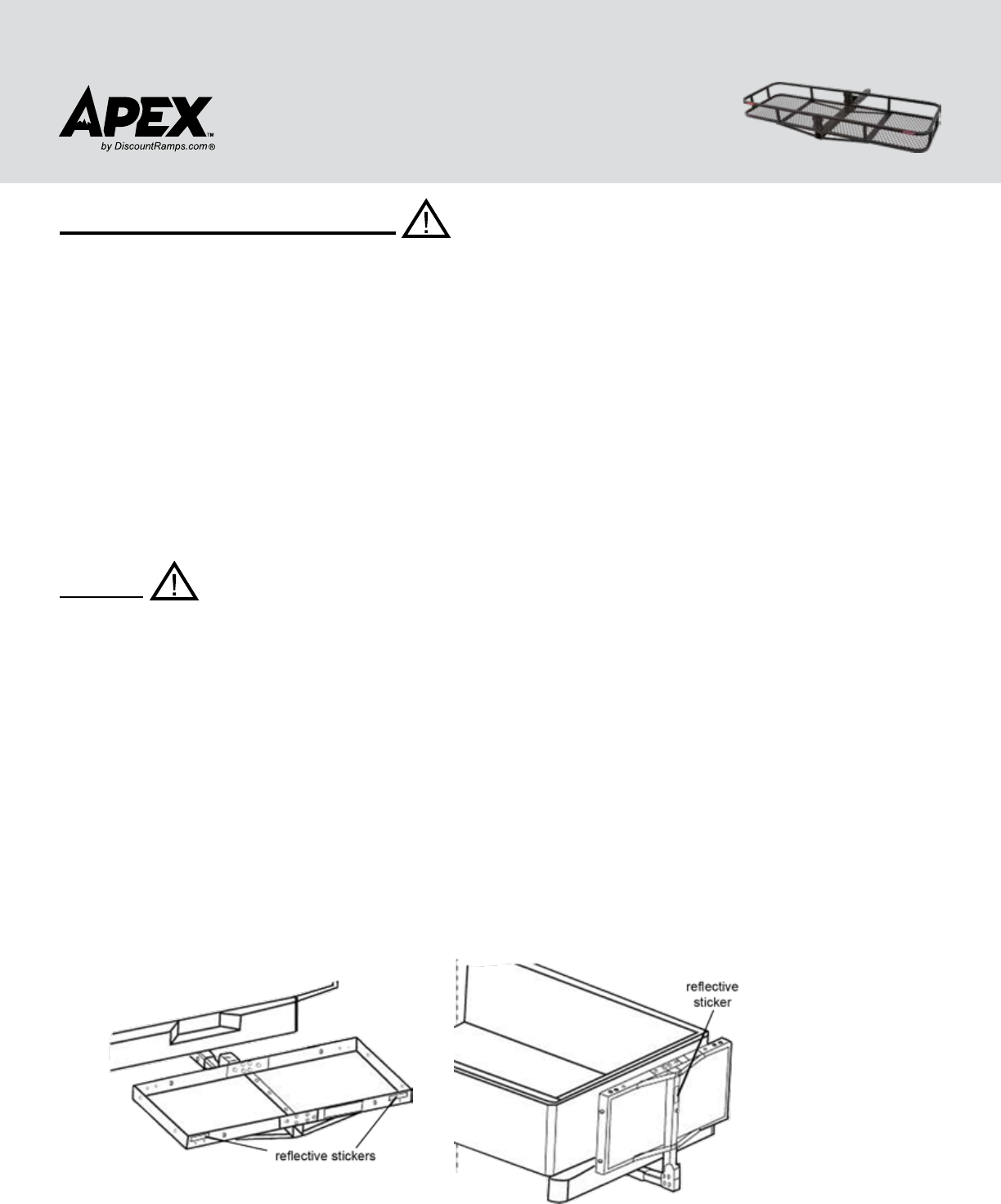

• Be sure to attach reective stickers

Steel Basket Folding Cargo Carriers

Instructions for Part # CCB-F4820-DLX,

CCB-F6020-DLX

Summary of content (5 pages)

PAGE 1
Steel Basket Folding Cargo Carriers Instructions for Part # CCB-F4820-DLX, CCB-F6020-DLX General Guidelines • It is the user’s responsibility to read and follow all instructions. • Keep these instructions with the product at all times and review before each use. • It is the responsibility of this product’s owner to furnish the instructions to any person that borrows or purchases the product.
PAGE 2
Parts A B C D E F G H I J Part Description K Quantity L M Part Description Quantity A M10x80 bolt 7 H Main Tube 1 B M10 Washer 14 I Pin 1 C M10 Lock Washer 7 J Pivot Bolt 1 D M10 Nut 7 K Pivot Bolt Washer 2 E Reflective Sticker 3 L Pivot Bolt Lock Washer 1 F Cargo Carrier Basket Section 2 M Pivot Bolt Nut 1 G Folding Receiver Tube w/ Bracket 1 Rev. 062118 *Trailer hitch pin not included DiscountRamps.
PAGE 3
Basket Assembly Step 1. Slide the cargo carrier sections (F) together until the bolt holes line up. It may help to prop up one or both ends to keep the holes aligned. (1) Step 2. Secure the sections with four M10x80 bolts (A), washers (B), lock washers (C), and nuts (D). A B B C D (2) Step 3. Flip the carrier over to install the main tube (H). Secure with three M10x80 bolts (A), washers (B), lock washers (C), and nuts (D).
PAGE 4
Receiver Tube Assembly Step 1. Insert the bracket end of the folding receiver tube (G) into the main tube (H). Cargo Carrier Side (1) Step 2. Secure the folding receiver tube with the pivot bolt* and pin (I) to the main tube bracket. Cargo Carrier Side Pin (2a) Pivot Bolt *Pivot Bolt Assembly (side view) J (2b) K Hitch Tube & Bracket K L M Step 3. To fold the carrier vertically, remove the pin and fold the carrier.
PAGE 5
Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
