Instructions / Assembly

10
Step 3: Mounting The Faucet
1. Mount the faucet as shown in Fig.7.
Step 4: Positioning The System
1. Main System: The main system can stand in the sink cabinet. No need to mount the system
to the wall.
2. Connect the White line to the faucet.
3. The faucet has two operating positions:
Push black lever down to fill a glass
of water, or lift lever up into a locked
position to fill a con tainer or to drain
the storage tank.

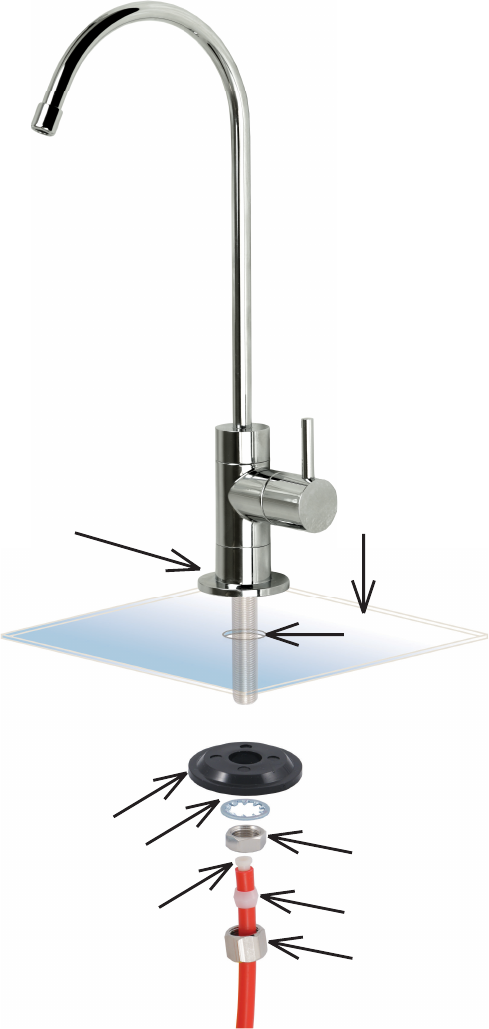

Fig. 7
Chrome Base
Black L
ocating Washer
Lock Washer
Lock Nut
Insert
Sleeve
Compression Nu
t
Counter Top
Counter Top
Opening
B
a
s
e
