4
Part II. System Maintenance - Filter Change Instructions
Connect Tubing

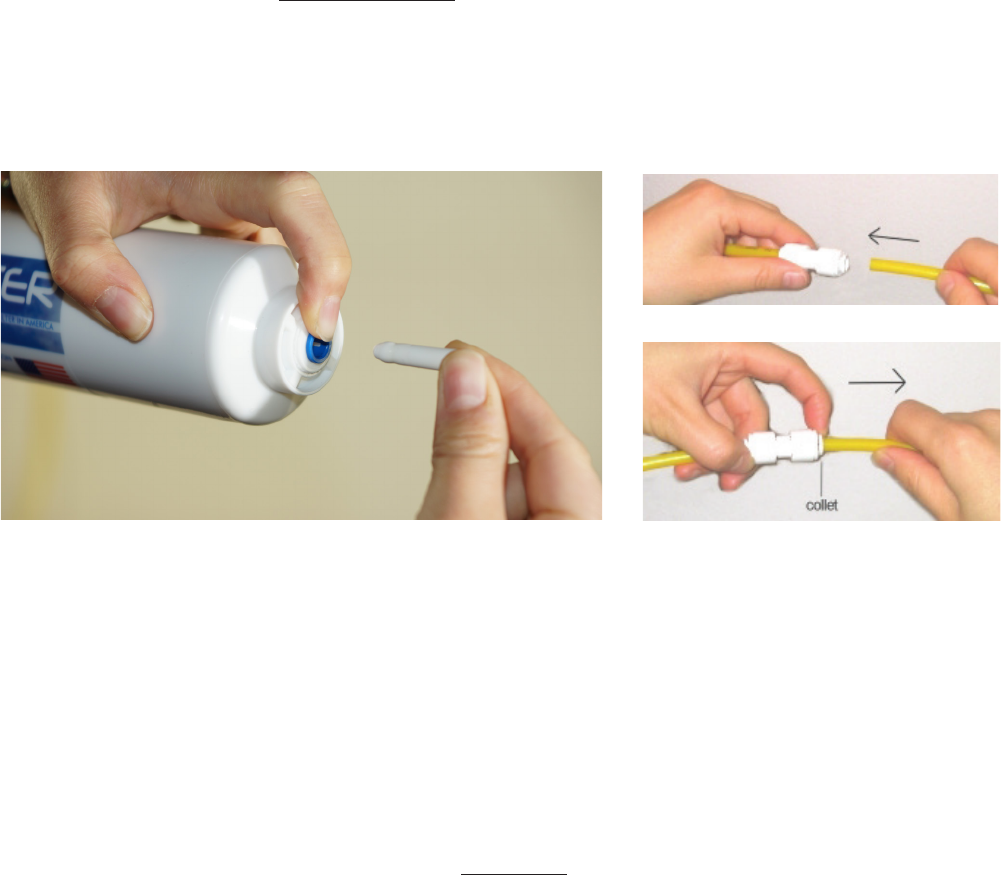

Press down on collet to pull out tubing
Figure C1
Filter Ports:
All filters have Quick-Connect ports. Remove and connect tubing to filter ports as shown in
the above “Quick-Connect Guide” diagram.
Remove Filter:
Please change one filter at a time to avoid mixing up the filters. New filters come with 2”
protective plugs on each end. You can take them out by pressing on the collet ring with one
finger and using a pair of pliers or hand to pull out the protective tubing (See Figure C1).
Figure C2
Figure C3
How to Connect: - See Fig. C2. Push the tubing into the Quick-Connect fitting, then gently
pull back on the tubing to make sure connection was secure.
- No inserts, sleeve, or nuts are needed to secure the connection.
- No Teflon tape!
To Disconnect: - See Fig.C3. Push in and hold down on the collet ring square against
the fitting. With the collet held in this position the tube can be removed.
