Installing the Tower Transformer to SURT UPS
Follows these instructions when installing the transformer with a new or existing Smart-UPS RT UPS.
• The transformer must be installed to the LEFT of the UPS when facing the FRONT of the units.
• If your configuration includes the optional bypass panel, ensure that the bypass panel is installed to the
LEFT of the transformer when facing the FRONT of the units. Refer to the bypass panel manual for
installation instructions.
• Secure the transformer to the UPS using the provided tie brackets.
1. Move the transformer to the installation site.
2. Remove the covers on the transformer
and UPS as shown.
3.
Remove the 2 screws at the top and bottom of the UPS and transformer .
4. Secure the transformer to the UPS.
a. Locate the 2 screws and 3 tie brackets from the literature kit.
b. Secure the appropriate tie bracket with screws to the top of the units
.
c. Reuse the screws removed in step 3 to secure tie brackets
at the top and bottom of the units.
5. Reuse the screws removed in step 2 to secure the covers to the UPS
and transformer .
6. Install the transformer bezel
to the front of the unit.
7.
See the “Connection and Startup Instructions” on page 11 to complete the installation.

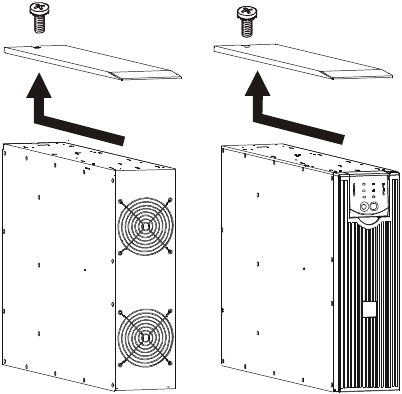

Place the transformer to the left side of the UPS at the installation location. Remove the top covers on the transformer
and UPS.
