Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac 500 VA 100 Vac Tower 3

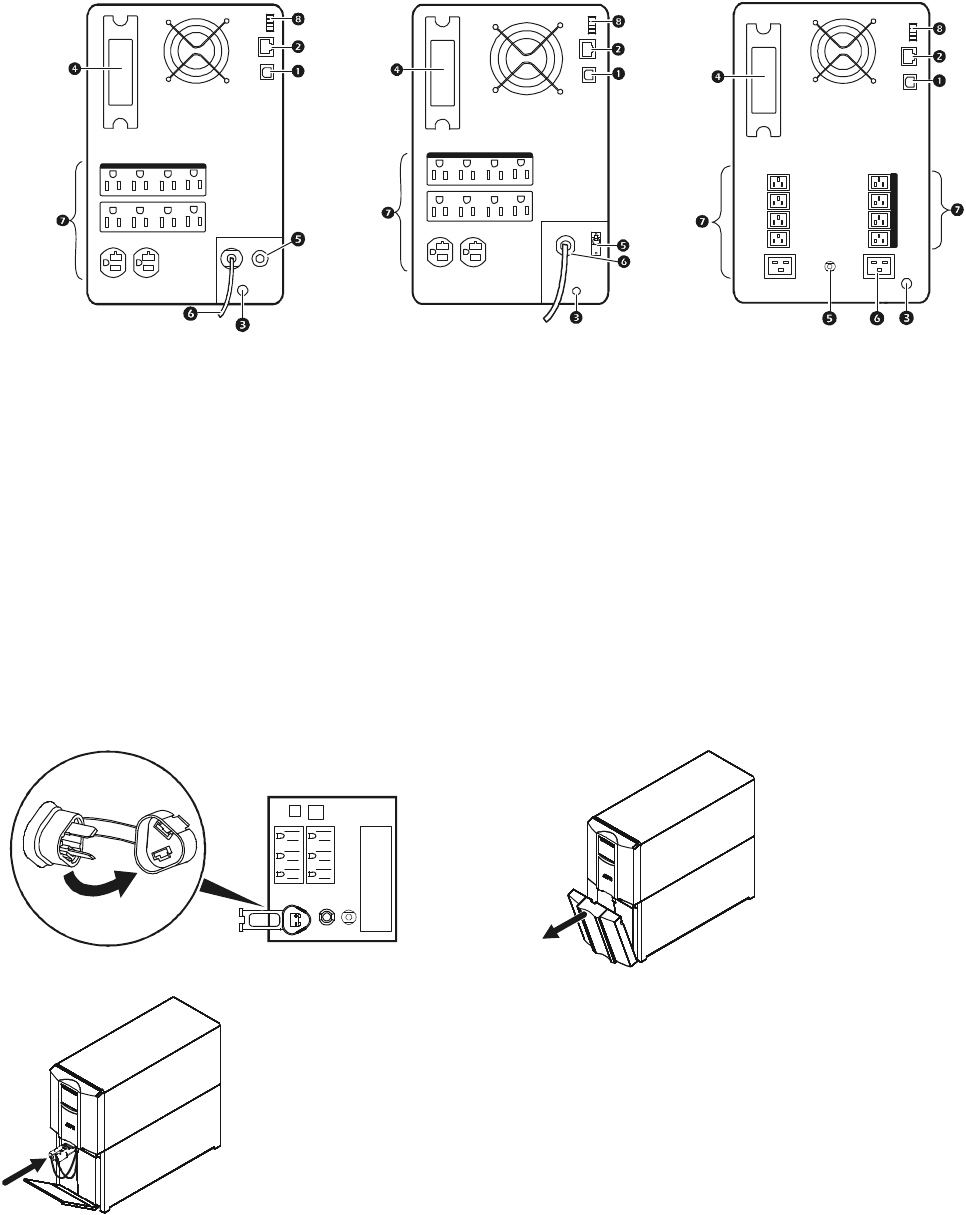

Rear panel features 2200 VA / 3000 VA models
Installation
2200 VA 120 Vac
2200/3000 VA 100 Vac
3000 VA 120 Vac
2200/3000 VA 230 Vac
USB port
RJ45 connector - serial UPS monitoring port
Chassis ground screw
SmartSlot for optional NMC accessory card
Circuit breaker/Overload protection
UPS input
Outlets
EPO connector
500/750/1000/1500 VA models
Connect the battery
2200/3000 VA models
Remove the bezel
Insert the battery connector into the battery jack and push firmly. A snap will be felt as the
connector partially engaes the jack. A second snap will be felt as the connector securely seats in
the battery jack.
