User Manual

Smart-UPS 750/1000/1500/2200/3000 VA 120/230 Vac 500 VA 100 Vac Tower2
Inventory

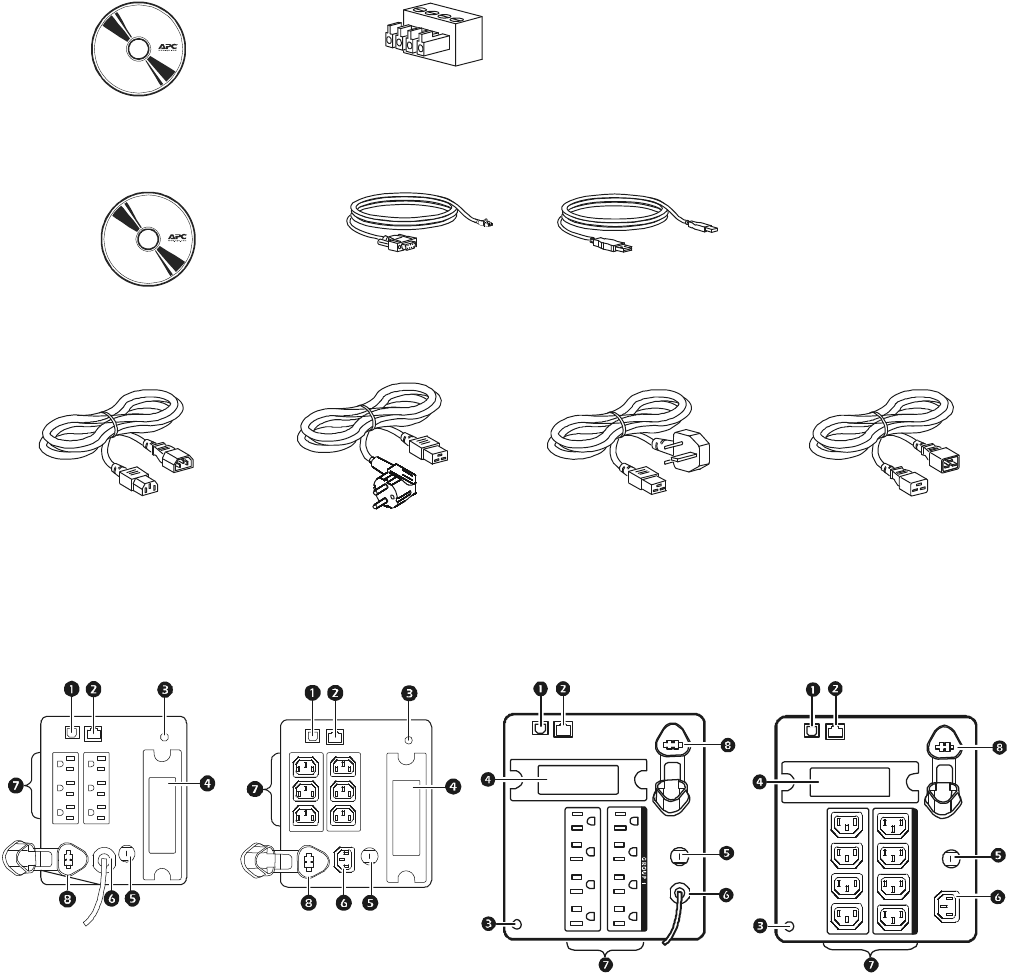

Rear panel features 500 VA to 1500 VA models
All models 120/230 Vac models
(1) Documentation CD (1)
120/230 Vac models
(1) PowerChute software CD (1) (1)
230 Vac models
(2) 2200/3000 VA models
(1)
2200/3000 VA models
(1)
2200/3000 VA models
(1)
500 VA 100 Vac
750 VA 100/120 Vac
750 VA 230 Vac
1000/1500 VA 100 Vac
1000/1500 VA 120 Vac
1000/1500 VA 230 Vac

USB port

RJ45 connector - serial UPS monitoring port

Chassis ground screw

SmartSlot for optional NMC accessory card

Circuit breaker/Overload protection

UPS input

Outlets

Internal or external battery connector
su0326b
su
0327b
GROUP 1
su0325c
GROUP 1
su0328c
