User Manual Smart-UPS RC UXI/UXICH 1000/2000/3000 VA 220/230/240 Vac Tower/Rack-Mount 4U 9

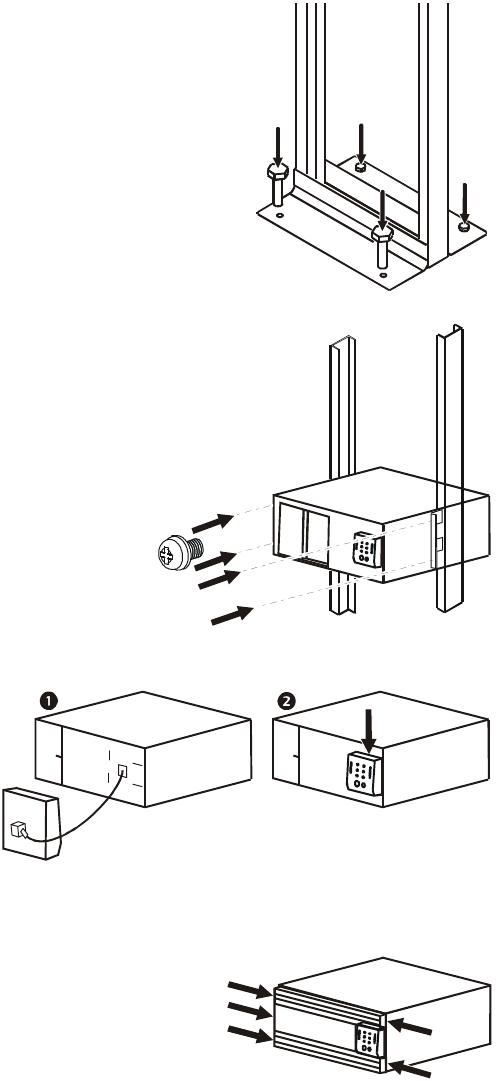

Secure 2-post rack to floor
Install UPS in rack
The UPS and XLBPs should be installed at or near
bottom of rack. Always place UPS above XLBPs.
Batteries must be removed from units prior to
installation in a rack.
Two screws (not supplied), must be used to secure each
rack-mount bracket to rack.
Install display panel
Locate UPS display panel in UPS
packaging.
Install display panel as shown in
diagram.
Install bezel
1. Fit three tabs on inside edge of bezel into slots in chassis.
2. Tip bezel toward chassis. Fit two tabs on inside edge of bezel into
slots in chassis and snap bezel into position.
su0248a
su0249a
x2
x2
su0250a
su0241a
