User Manual Smart-UPS RC UXI/UXICH 1000/2000/3000 VA 220/230/240 Vac Tower/Rack-Mount 4U 8
2-post rack-mount configuration
This UPS is intended for installation in a 19”, two-post or four-post rack.
For details on 4-post rail and rack installation refer to instructions in rail kit.
Remove stabilizer brackets if they are installed. Remove four screws that secure each bracket.

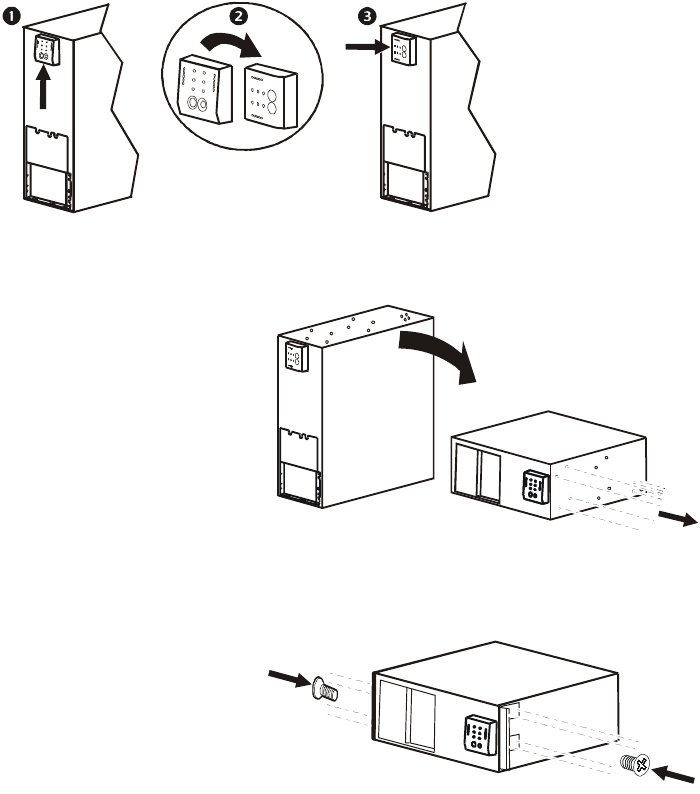

Remove and rotate display panel
1. To remove display panel from UPS, slide display panel up.This will disengage display panel tabs from
UPS.
2. Rotate display panel and insert tabs on display panel into appropriate slots on UPS.
3. Secure display panel to UPS by sliding display panel to the right.
Position UPS for mounting in rack
The UPS is heavy. Use caution when
positioning UPS.
NOTE: The holes for securing rack-mount
brackets are plugged. Remove the
appropriate plugs prior to installing
brackets on the unit.
Install rack-mount brackets
Four pan head screws (supplied), must be used
to secure each rack-mount bracket to UPS.
su0245a
s
u
0
2
4
6
a
x8
s
u
0
2
7
4
b
x4
x4
