User Manual Smart-UPS RC UXI/UXICH 1000/2000/3000 VA 220/230/240 Vac Tower/Rack-Mount 4U 7
Tower configuration

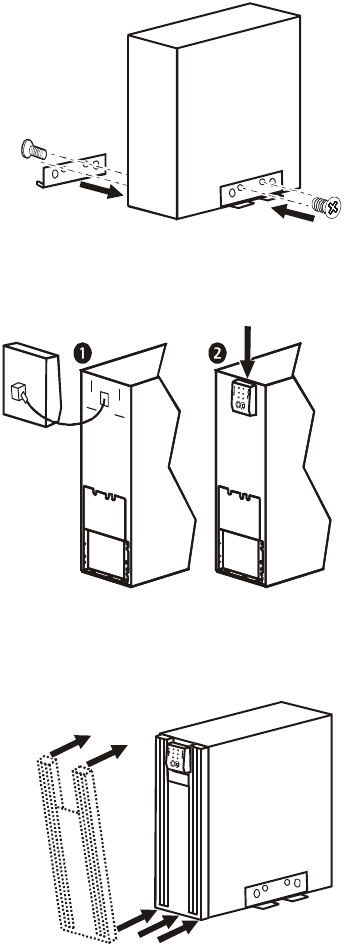

Install stabilizer brackets
1. Stabilizer brackets must be installed on tower units.
2. Each bracket must be secured with two flat head screws
(supplied).
NOTE: Screws are pre-installed on left side of unit. These
screws must be removed from unit and used to secure
stabilizer bracket. Screws for securing stabilizer bracket
to right side of unit are included in hardware bag
supplied with unit.
Install display panel
Locate UPS display panel in UPS packaging.
Install bezel
1. Fit three tabs on bottom inside edge of the bezel into slots in
chassis.
2. Tip bezel forward. Fit two tabs on top inside edge of bezel into
slots in chassis and snap bezel into position.
su212a
su0228a
su0244a
