Maintenance: Parts Replacement
990-3054B-001 Modular Power Distribution Unit – Operation 19

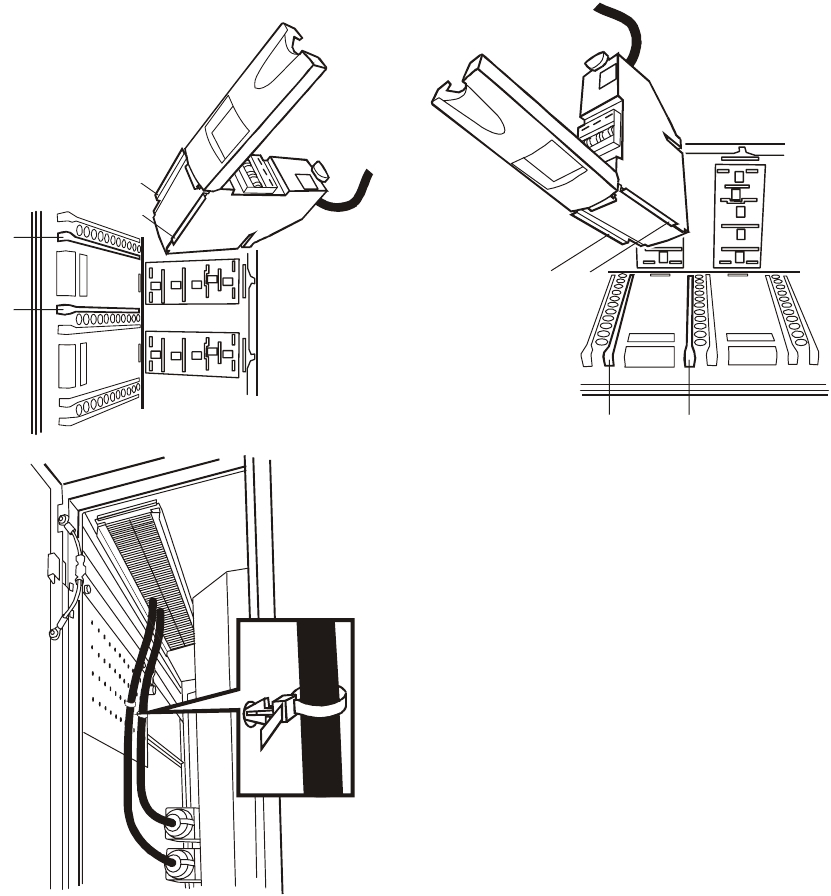

Slide the PDM all the way into the slots. Close the latch to secure the module in the busbar.
Use plastic ties to secure loose cable(s) to the enclosure (only in Vertical Rack Distribution Panels).
Connect the PDM cable to the load.
Turn the PDM circuit breakers ON (see the drawing under “How to install a Power Distribution
Module” on page 17).
Use the reverse procedure to remove the PDM.
Vertical Rack Distribution Panel
Horizontal Rack Distribution Panel
