Maintenance: Parts Replacement
18 Modular Power Distribution Unit – Operation 990-3054B-001

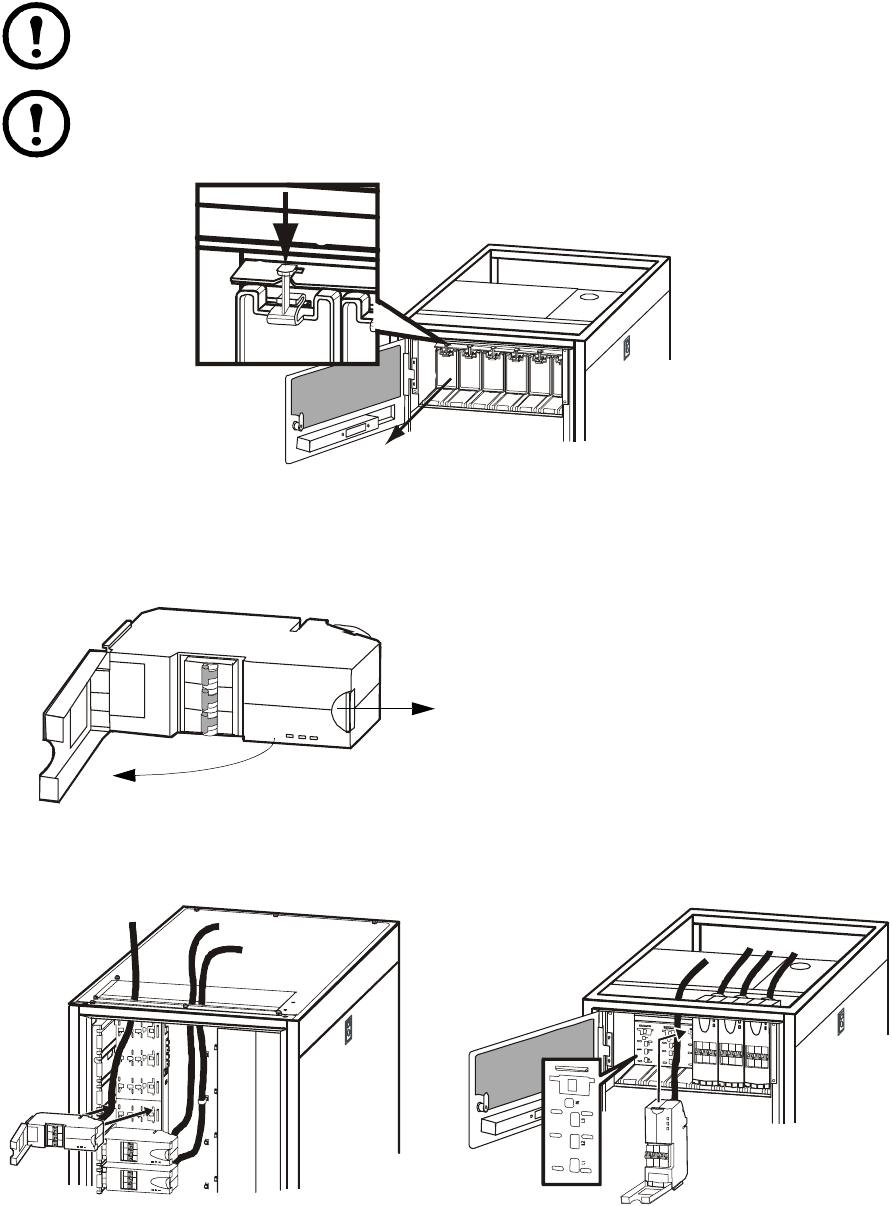

How to remove a filler plate
Note: Filler plates come pre-installed in UL certified Modular Power Distribution Unit (PDU)
products PDPM72F-5U and PDPM72F-R when a Power Distribution Module (PDM) is not
installed.
Note: Do not throw away the filler plate. Keep it for potential later use.
Press down on the clip to remove the filler plate.
Pull out the plate from the unit
=Verify that all breakers are in the OFF position.
=Press the red button to release the latch.
=Pull open the latch.
Feed the cable(s) up through the top opening in the enclosure and into the cable power troughs (if
applicable) on top of the racks.
Vertical Rack Distribution Panel Horizontal Rack Distribution Panel
Busbar
