Central Server Installation Manual
Table Of Contents
- Product Description
- Installation
- Installation Instructions
- Before You Begin
- RapidRails Rack Kit Contents
- Installation Tasks
- Communication Connection
- Network overview
- Set up the Private LAN
- Route network cables to the InfraStruXure Central server and switch (or hub)
- Connect the InfraStruXure Central server to your Public LAN
- Connect the InfraStruXure Central server to your Private LAN
- Apply power to the InfraStruXure Central server and switch (or hub)
- Initial Configuration
- Product Information
- Appendix A: LED Error Codes
- Appendix B: Diagnostic Messages
- Warranties and Policies
15InfraStruXure Central Installation Manual

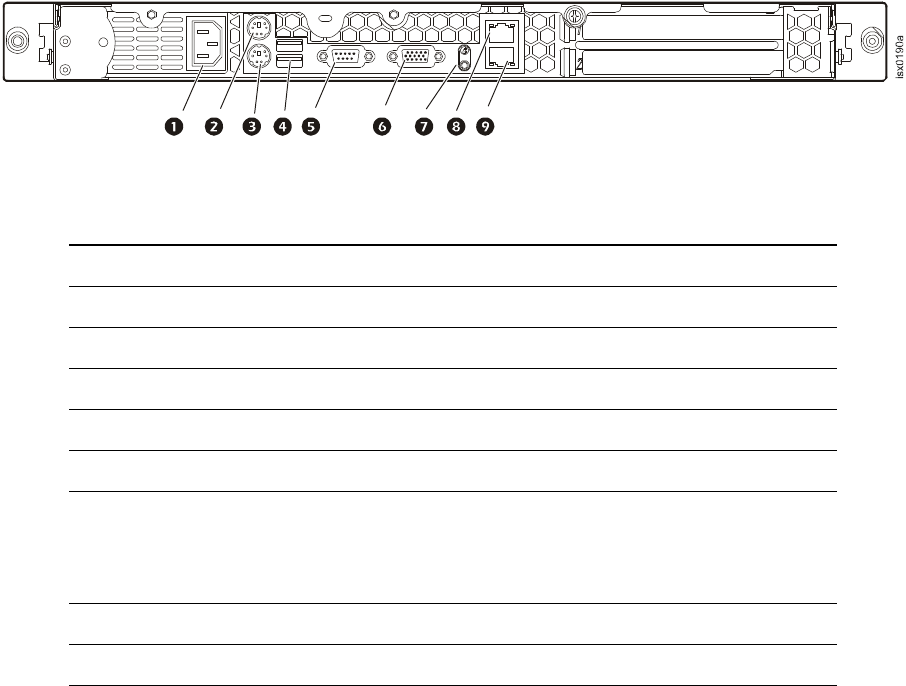

InfraStruXure Central rear panel
Basic model (rear)
Item Function
Power Socket Receptacle for power cord.
Mouse PS/2 Mouse port
Kbd PS/2 Keyboard port
USB Ports (2) Used to connect USB 2.0-compliant devices to the system.
Serial 9-pin
Monitor External monitor port
System Status
LED and
button
The identification buttons on the front and back panels can be used
to locate a particular system within a rack. When one of these
buttons is pushed, the blue system status indicator on the front and
back blinks until one of the buttons is pushed again.
Gb1 Gigabit Ethernet
port for connecting to a public LAN.
Gb2 Gigabit Ethernet port for connecting to the private LAN.
