Information

Revision 1, April 2014
LCD Display Screen
Comprehensive status at a glance
Status Conditions
-On line
-On battery
-Green mode
-Load graph
-Battery charge graph
-Audible Alarm
Measures
-Input & Output Voltage
-Load viewable in Watts, VA or %
-Output current and frequency
-Event counter
-Estimated on battery runtime
APC Smart-UPS C
Display
1
On Line/On Battery
LED illuminates Green when
UPS in on utility power, or will
illuminate Orange when
providing battery power.
System Fault LED
Illuminates in the event of a
system fault and displays
error message.

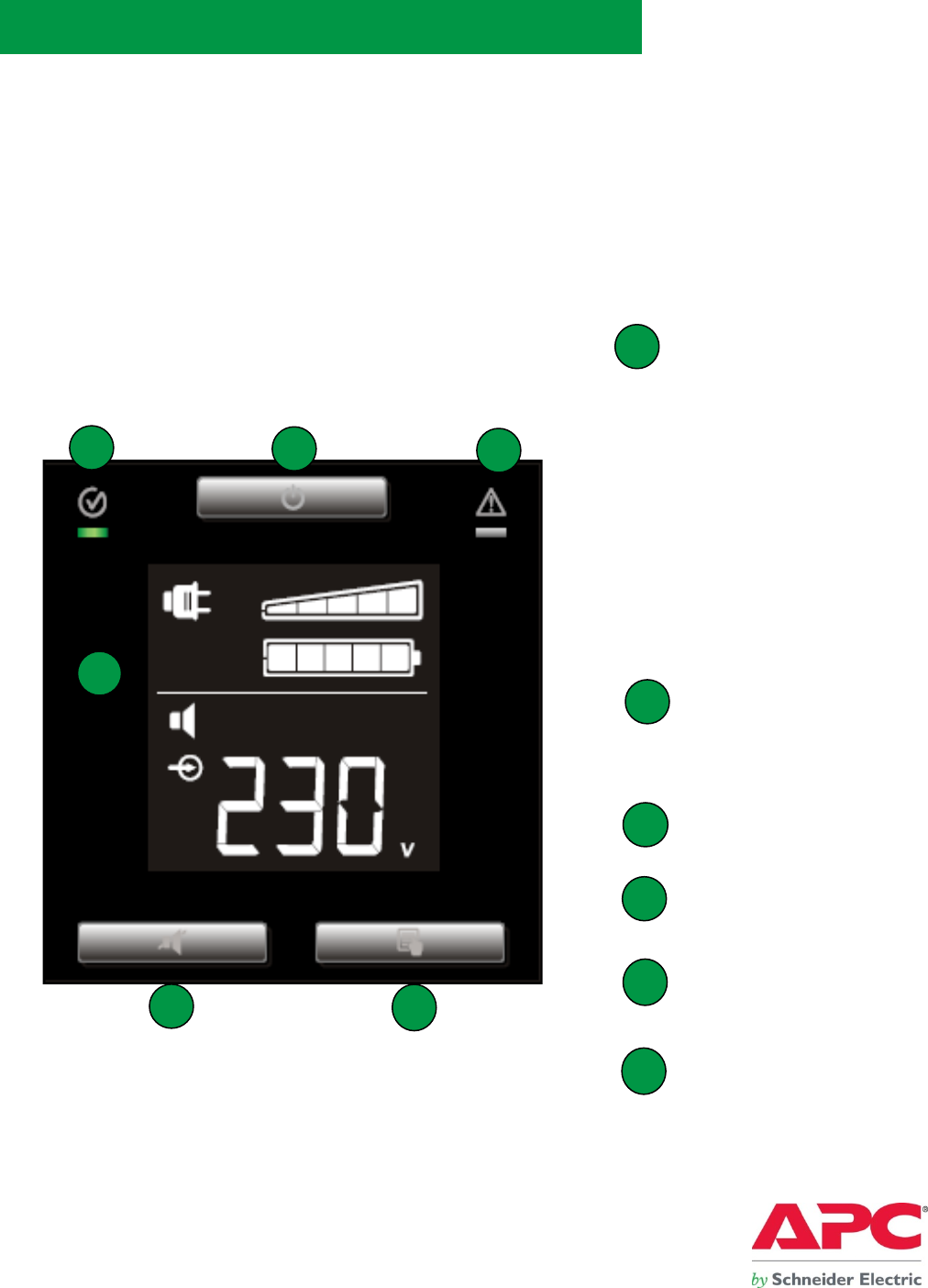

Comprehensive LCD interface for status at a glance.
2
3
4
Display Button
Steps through each
measurement screen and
provides the ability choose the
default view.
1
2
3
4
5
On/Off button
5
6
6
Mute Button
Used to silent the alarms
Interface on all SMC models.
