Specifications




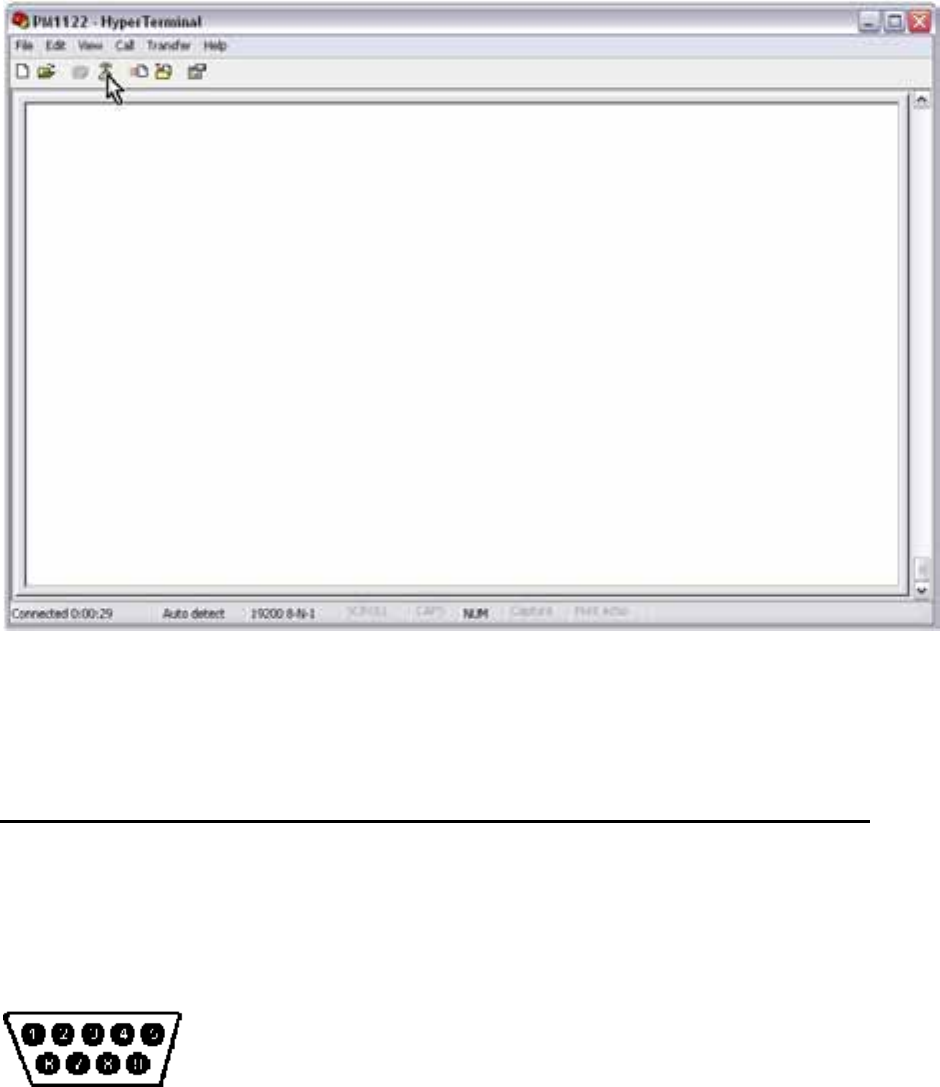

Clickonthetelephonesymboltoconnect ordisconnecttothePM1122‐INT.Thebottomtaskbar
showstheconnectionstatus(connected/disconnectedandtheappliedbaudrate,databits,
parityandstopbits).


RS232CableSpecifications.

RS232connectiononthePM1122interface:
AstraightthroughPCSerialCableisusedtocommunicatefromtheRS232porttoathird‐party
controllersuchasaPCusingHyperterminaltotheRS232serialportonthePM1122INTunit.This
kindofcablescanbesourcedlocally,everycomputershopshouldbeabletosupplyyouthe
rightcabletype.



Pin2:TXdata:datatransmissionoutput
Pin3:RXdata:datareceptioninput
Pin5:GND:ground
Allotherpinsarenotused.
