Specifications




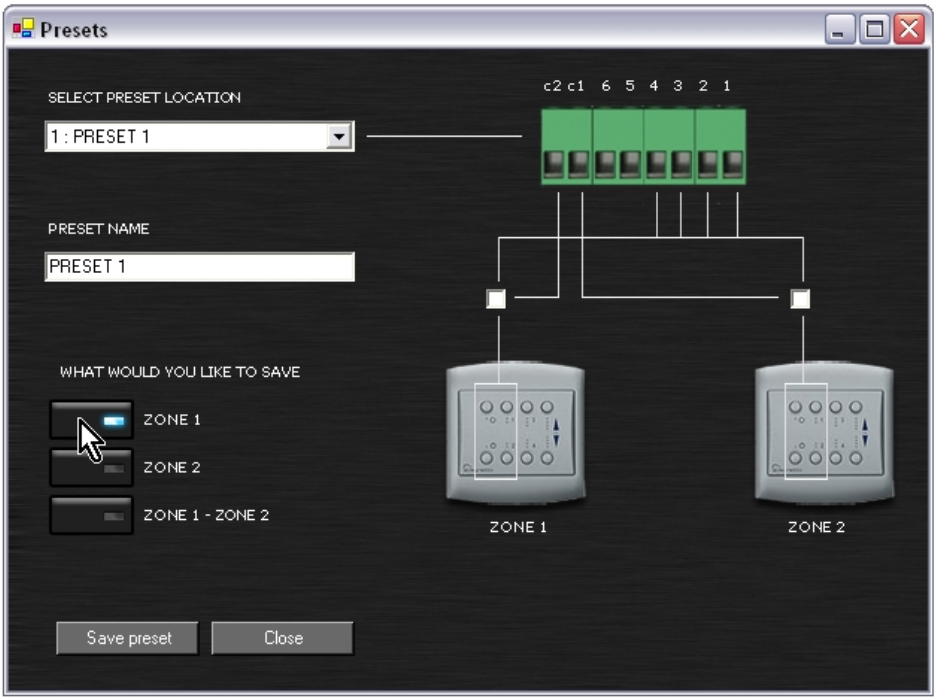

Hereyoucanspecifyifthesettingsyoumakeinthemixerandsourceselectscreenwillbevalidforzone
1and/orzone2.Simplysetthelevelsandselectthesourceinthemixerscreen,clickononeofthezone
buttonsunder“Whatwouldyouliketosave”andgivethepresetanameifyouwish.Nextclickthe
“Savepreset”button.ThesettingsyoumadewillbestoredinthePM1122‐INTinternalmemoryandcan
berecalledusingtheControlpanelsoftware,orbyusingthewiredpresetselectorsconnectedtothe
euroblockconnectorsatthebackofthePM1122‐INT.ThewiringdetailsaredescribedinthePM1122‐
INTmanual.
FinallyyoucanspecifywhetherornotthebuttonsnamedAtoDontheoptionalRFKEYwireless
transmitterswillbeusedtoselectsourceAtoDorpreset1to4(transmitterzone1)orpresets
numbered7to10(transmitterzone2).Toenablepresetselection,markthewhitefieldsabovethe
wirelesstransmitterstoenablepresetselection.ThesesettingsarealsostoredinthePM1122‐INT
internalmemory.


