Wewillnowproceedtothenextscreenandshowafewfeaturesnotavailableonthepre‐amp’sfront
panel.

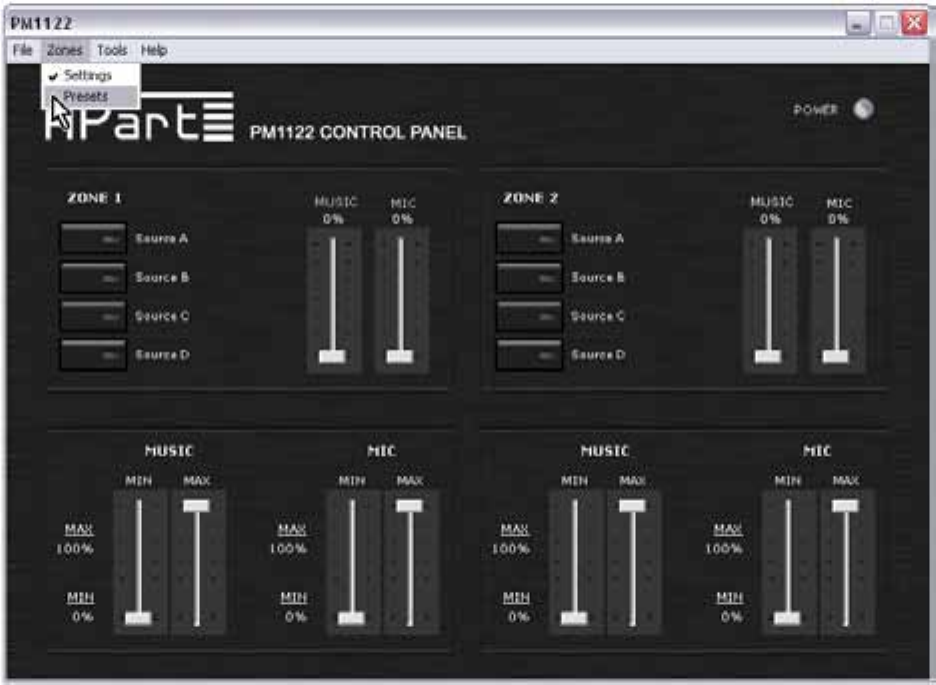

Clickthe“Zones”tabinthetopbarandselect“Settings”.Themixerscreenshouldlooklikethis:



Hereyoucansetminimumandmaximumlevelsformusicandmicrophoneinzone1and2.Pleasenote
thatthetopsliderswillmoveaccordingtotheminandmaxsettingsyouspecifyhere.Thiswayyoucan
preventuserstoexceedapredefinedlevelformusicandmicsignals,providingexcellentpro tection
againstoverloadsandabuse.ThesesettingscanbesavedinthePM1122‐INTmemory.Pleasenotethat
themicandmusiclevelledmetersonthePM1122‐INTfrontpanelwillnotreachfullscaleifyouhave
setalevellowerthan100%inthisscreen,thesame fortheminimumlevel,youwillnotbeableto
entirelymuteasignalwhenyouspecifiedavaluelargerthan0%.
Timetoproceedtothenextscreen,underthe“Zones”tabintheupperbar,select“Presets”,thescreen
willenlargeandshouldlooklikethis:
